- Overview
Overview
First released in December 2018 the MR-03EVO series delivered amazingly fast processing speed and featured a separate receiver board that provided the flexibility of transmitter choice. Two years after its stunning debut, the MR-03 EVO lineup has been strengthened with a race-based chassis. Until now the speed range setting was KV5600 for wide chassis, but it has been reduced a level to KV4100. While retaining the full bearing specifications and Ball Diff Set II, align the base chassis with the new standard speed range and open a wider group of users. From the compatible receiver units : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up from the Readyset. Perhaps the MR-03EVO chassis set’s greatest advantage is that it can also be combined with a brushed motor (No.MZ9E, sold separately) to adapt to an even wider range of driving conditions.
Includes:

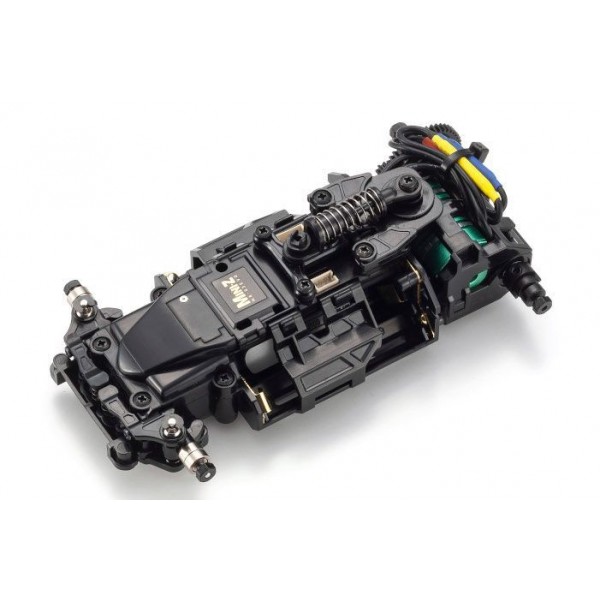

- MR-03N-MM2 Factory assembled chassis with KYOSHO SPEED HOUSE XSPEED 4100KV brushless motor
- Parts set for changing front tread
- 6T, 7T, 8T, 9T Pinion gears
- Wheel wrench
- Tools for pinion gears
- Spare wheel nuts
Requires:
- Receiver unit
- Transmitter compatible with receiver unit
- Auto Scale Collection (body set, wheels, tires)
- (4) AAA alkaline batteries or Ni-MH batteries for chassis
- Batteries for transmitter
features
- First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
- Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless motor (4100KV).
- I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
- Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
- Equipped with ball bearings and Ball Diff Set II.
Length: 117.7mmSpecs
Width: 70-76mm
Height: 35mm
Wheelbase: 94.0mm (LL)
Tread F: : 61.5-63.0mm/R:61.5-63.0mm
Motor Mount: MM2
Tires (F/R): 25×8.5mm (sold separately)/25×8.5-11mm (sold separately)
Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
Weight: 135g (approx.)
Motor: KYOSHO SPEED HOUSE / XSPEED 41 (4100KV)- Specs
Product Specifications
Part Number KYO32798 Kit Type Unassembled Kit Length 117.7mm Width 70-76mm Height 35mm Wheelbase 94.0mm (LL) Tread F : 61.5-63.0mm/R:61.5-63.0mm Motor Mount MM2 Tires (F/R) 25×8.5mm (sold separately)/25×8.5-11mm (sold separately) Gear Ratio 7.3, 6.3, 5.5, 4.9:1 Weight 135g (approx.) Motor KYOSHO SPEED HOUSE / XSPEED 41 (4100KV) - Reviews
