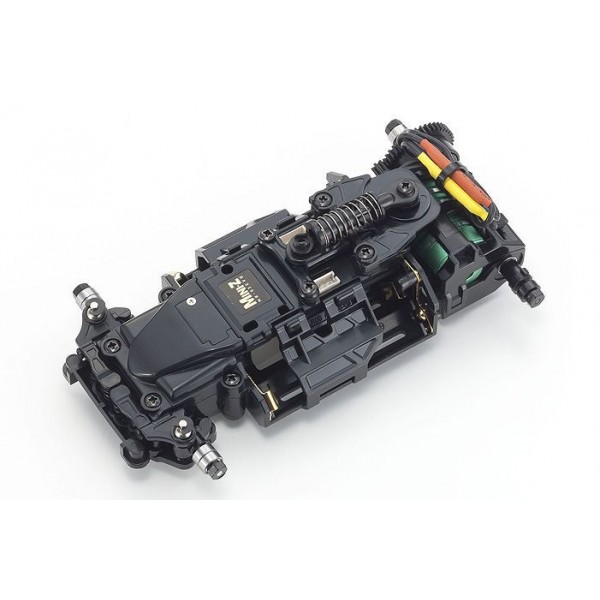

Kyosho MR-03N-MM2 Factory assembled chassis & XSPEED Brushless Motor


LOADING IMAGES
Kyosho (KYO) Logo Kyosho MR-03N-MM2 Factory assembled chassis & XSPEED Brushless Motor
$159.99
This is a Kyosho MR-03N-MM2 Factory assembled chassis with Speed House XSPEED 4100KV brushless motor and a dedicated CPU for dedicated positioning control of the servo

Availability: In stock*

Only 2 left

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The existing MINI-Z has installed receiver, servo and ESC by one controlled PCB unit. But the MR-03EVO N-MM2 4100KV chassis set has a separate receiver unit. By installing a receiver unit depending on your transmitter, it allows for using Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters.

Further, by installing a CPU which controls servo function only, it improved internal feedback of positioning control which is 11.2 times faster than existing VE PRO models. The control program provides the best ever steering feeling in MINI-Z history. The ESC also improves the response speed a maximum of 100 times faster than existing VE PRO models.

The KYOSHO SPEED HOUSE XSPEED 41 (4100KV) brushless motor features easy-to-drive power characteristics and longer runtime. Unlike previous chassis sets, you can change to the brushed motor mode though the I.C.S manager to install an optional brushed motor. The I.C.S manager also allows more precise setting adjustments to be made.

Includes:

  • MR-03N-MM2 Factory assembled chassis with KYOSHO SPEED HOUSE XSPEED 4100KV brushless motor
  • Parts set for changing front tread
  • 6T, 7T, 8T, 9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

Requires:

  • Receiver unit
  • Transmitter compatible with receiver unit
  • Auto Scale Collection (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter

features

  • MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
  • KYOSHO SPEED HOUSE XSPEED 41 brushless motor (4100KV).
  • Optional I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
  • Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
  • Equipped with full ball bearings.
  • Separate receiver cover and front upper arm mount make tread adjustment easier.
  • Compatible with optional parts for the MR-03 chassis.

Specs

Length: 4.63 in. (117.7mm)
Width: 2.76-2.99 in. (70-76mm)
Height: 1.38 in. (35mm)
Wheelbase: 3.70 in. (94.0mm) (LL)
Tread: Front: 61.5-63.0mm / Rear: 61.5-63.0mm
Motor Mount: MM2
Tires (Front/Rear) 25 x 8.5mm (sold separately) / 25 x 8.5-11mm (sold separately)
Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
Weight: 4.76 oz. (135g) (approx.)
Motor: KYOSHO SPEED HOUSE / XSPEED 41 (4100KV)
Specs

Product Specifications

Part NumberKYO32794
Kit TypeUnassembled Kit
Length4.63 in. (117.7mm)
Width2.76-2.99 in. (70-76mm)
Height1.38 in. (35mm)
Wheelbase3.70 in. (94.0mm) (LL)
TreadFront: 61.5-63.0mm / Rear: 61.5-63.0mm
Motor MountMM2
Gear Ratio7.3, 6.3, 5.5, 4.9:1
Weight4.76 oz. (135g) (approx.)
MotorKYOSHO SPEED HOUSE / XSPEED 41 (4100KV)
