Kyosho MINI-Z MR-03VE PRO 02 Color Limited (W-MM) Chassis Set


LOADING IMAGES
Kyosho (KYO) Logo Kyosho MINI-Z MR-03VE PRO 02 Color Limited (W-MM) Chassis Set
$229.99
Meet the 4th version ‘02 Color Limited’ MR-03VE PRO Series chassis set which incorporates the ultra-fast response of the MHS (MINI-Z Hybrid Spread Spectrum) 2.4GHz system that is 16 times faster than the previous ASF 2.4GHz system + KT-18 transmitter combination and 4 times faster than the ASF 2.4GHz system + KO PROPO EX-1 transmitter combination.

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

Meet the 4th version ‘02 Color Limited’ MR-03VE PRO Series chassis set which incorporates the ultra-fast response of the MHS (MINI-Z Hybrid Spread Spectrum) 2.4GHz system that is 16 times faster than the previous ASF 2.4GHz system + KT-18 transmitter combination and 4 times faster than the ASF 2.4GHz system + KO PROPO EX-1 transmitter combination. The stunning color scheme of the previous generation MR-02 has been revived in this latest version including blue Upper Cover Set (No.MZ502) and Chassis Small Parts Set (No.MZ402) together with grey molded parts in the Chassis Set (No.MZ501) to create contrasting visuals to the straight black of the normal MR-03 chassis. In addition to ball diff and the full ball bearing specs of the existing VE PRO, this new version is also equipped with a gyro unit. The MR-03VE PRO 02 Color Limited is a complete race-ready package distinguished by its limited edition color scheme and is also compatible with existing ASF 2.4GHz systems and can be paired with the Perfex KT-18 and the KO PROPO EX-1 transmitters.

Includes:

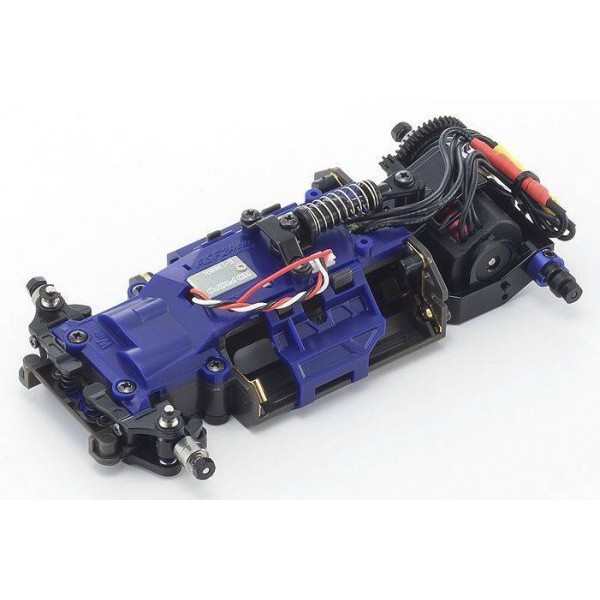

  • MR-03W-MM factory assembled chassis installed with Xspeed VE brushless motor
  • One-piece circuit board for brushless motor and RA-27 receiver with ICS connector
  • Parts for changing to RM type motor mount
  • Upper and lower plates for narrow tread (front), steering tie rod (included)
  • Front sus spacer for adjustment
  • Pinion gear tool
  • Pinion gear (7T, 8T, 9T)
  • Spare wheel nuts and wrench
  • Pairing stick

Requires:

  • MHS 2.4GHz transmitter (EX-6R, EX-6) or ASF 2.4GHz transmitter (Perfex KT-18, KO PROPO EX-1)
  • Auto Scale Collection (body set, wheels, tires)
  • 4 x AAA alkaline batteries for transmitter
  • 4 x AAA alkaline batteries or 4 x Ni-MH for chassis

Specs

Length: 124-133mm (MM chassis:125-133mm, RM chassis:124-132mm)
Width: 65-76mm
Height: 34-35mm
Wheelbase: 86-106mm(86,90,94,98,102,106)
Tread (F/R): Wide:61.5mm/59mm Narrow:56.5mm/56.5mm (when wheel offset is 0)
Tire (F/R): 23.5-25x8.5mm / 25-27x8.5-11mm
Gear Ratio: 7.3, 6.3, 5.5, 4.9 : 1
Weight: 135g (approx.)
Motor KV: 8500 Xspeed VE brushless
Specs

Product Specifications

Part NumberKYO32783B
Drivetrain2WD
Length124-133mm (MM chassis:125-133mm, RM chassis:124-132mm)
Width65-76mm
Height34-35mm
Wheelbase86-106mm(86,90,94,98,102,106)
Tread (F/R)Wide:61.5mm/59mm Narrow:56.5mm/56.5mm (when wheel offset is 0)
Tire (F/R)23.5-25x8.5mm / 25-27x8.5-11mm
Gear Ratio7.3, 6.3, 5.5, 4.9 : 1
Weight135g (approx.)
Motor KV8500 Xspeed VE brushless
