- Overview

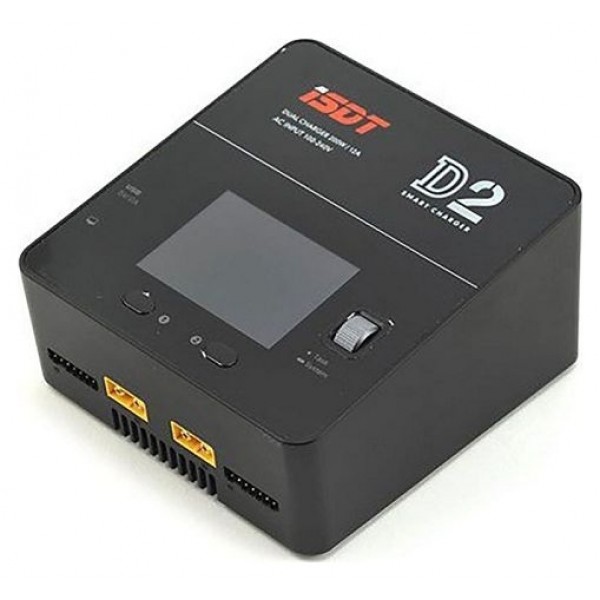

This is an ISDT part #ICC1030, iSDT D2 200W AC Charger with XT60 Charge Connector
features
- D2 Smart balance charger
- XT60 Charge Connector
- Wide range AC Input, 200w of dual output
- Dual channel output, without interference from each other
- Support up to 6S balance charging and discharging with 2 output ports
- 5V/2A USB output power from side of the unit, easily charge your mobile phone or other electronic products
- Wide range AC Input, Industrial level power management
- Adaptive for all different voltages across the world
- PFC circuit makes it works more stable and less interference to power grid
- (SCP) Short current protection
- (OLP) Over load protection
- (OVP) Over voltage protection
- (OTP) Over Temperature protection
- Outstanding performance on the power space ratio
- Carefully optimized internal structure, dual fan cooling system
- High-speed efficient synchronous digital power supply technology, dual-fan High speed ball-bearing fan promotes active cooling efficiency
- Bright, colorful, easy access set-up and status display
- Firmware updates can be performed using a personal computer
- AC Input
- USB Port
- Update Port
- Balance port for channel 1
- Battery port for channel 1
- Battery port for channel 2
- Balance port for channel 2
- Channel 1 select button
- Channel 2 select button
- 2.4"IPS display
- Speed shuttle key
Input Voltage: AC 100-240VSpecs
Charge Current: 0.1-12.0A x 2
Discharge Current: 0.1-3.0A x 2
Max Charge Capacity: 200W
Max Discharge Capacity: 5W x 2
Balancing Current: 1A/cell x 2
Balance Cells: 6S x 2
USB Port: 5V/2A
Supported Battery Type: LiFe/Lilon/LiPo/LiHv (1-6S)
Supported Battery Type: NiMH/Cd (1-16S)
Supported Battery Type: Pb (1-12S)
Display: 2.4" 320x240 IPS LCD
Operating Temperature: 0-40°C
Storage Temperature: -20-60°C
Dimensions: 120x108x70 mm
Weight: 558g- Specs
Product Specifications
Part Number ICC1030 Input Source AC Input Voltage AC 100-240V Charge Current 0.1-12.0A x 2 Discharge Current 0.1-3.0A x 2 Max Charge Capacity 200W Max Discharge Capacity 5W x 2 Balancing Current 1A/cell x 2 Balance Cells 6S x 2 USB Port 5V/2A Supported Battery Type Pb (1-12S) Display 2.4" 320x240 IPS LCD Operating Temperature 0-40°C Storage Temperature -20-60°C Dimensions 120x108x70 mm Weight 558g - Reviews
