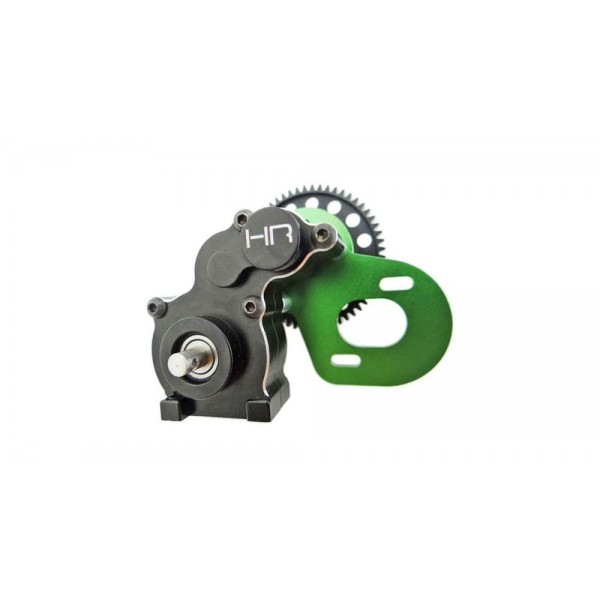

Hot-Racing Complete Steel Gear Transmission (AX10, SCX10)

This complete transmission features a heavy duty 32 pitch, 57 tooth spur gear.

SPECS:

• Weight: 5.1oz (146g)

FEATURES:

• Hardened steel spur gear and internal gears
• Full sealed ball bearings
• Locked output gear
• Billet machined aluminum transmission case and motor mount
• Transmission case is anodized black with secondary-processed machined beveled edges
• Motor mount plate and gear hub are anodized green
• Super duty adjustable metallic-pad slipper system
• Heavy duty 32 pitch 57 tooth steel main spur gear
• Assembled and ready to install
• Compatible with Axial AXI80078 stock gear cover and Hot Racing HRASCP32X01 aluminum cover (see requirements below)
• Uses stock bearing sizes for easy replacement, if needed

REQUIRES:

• Must use with 0.8 Module (32 pitch) pinion Gear
• Simple hand tools
• Installation
• Recommended to inspect all hardware prior to use and use a removable locking adhesive on screws threading into metal
• For Axial AXI80078 gear cover or Hot Racing HRASCP32X01 aluminum gear cover, Axial backplate AXI80078 is required. Backplate center hole may need to be slightly enlarged.
