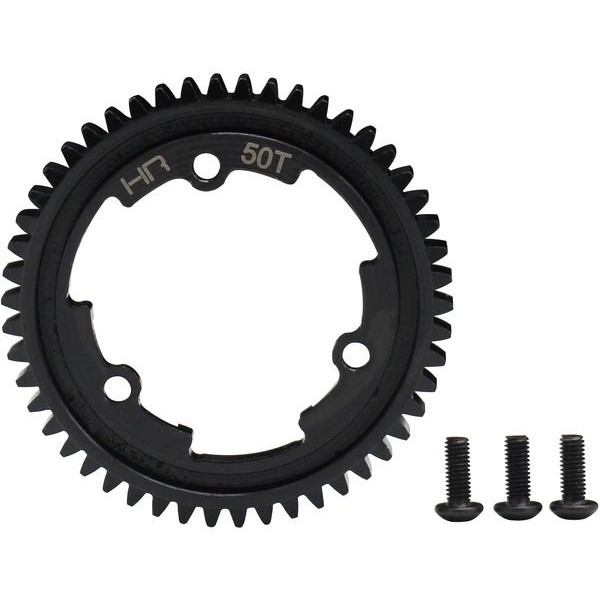

Hot-Racing 50T Hardened Steel Mod1 Spur Gear (E Revo 2/ X-Maxx/ XO-1)

The Hot-Racing 50T hardened steel Mod 1 spur gear for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, Maxx 4S, and XO-1.

NOTE:

• Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)
• With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.

Features:

• CNC machined hardened steel construction
• Black oxide finished
• Laser etched tooth count marking
• Upgrade for factory plastic TRA6448 or TRA6448X 54T spur gear

Specs:

• Overall diameter: 52.8mm
• Gear face width: 8mm

Includes:

• (1) 50T, 1 mod steel spur gear
