- Overview

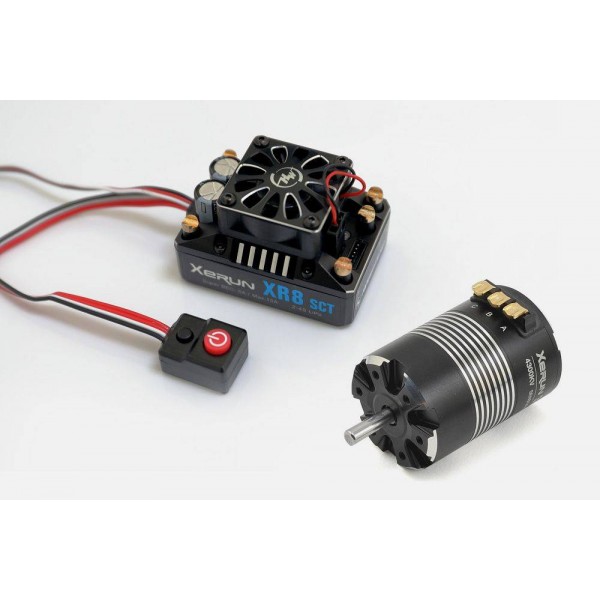

This us the Hobbywing XR8 SCT ESC with 3652SD G2 4300KV Competition Motor Combo. Great for 1/10 SCT/Truck/Monster Truck & 1/8th Buggy/On-road Racing
Includes:
- 1x XR8 SCT Pro ESC Black Edition
- 1x XERUN 3660SD G2 or 3652SD G2 or 4268SD G2 Competition Brushless Motor
- 1x HOBBYWING official Decal
features
- Turbo Timing Technology: Turbo timing technology is implemented by the XR8 SCT to unleash the maximum power of a HOBBYWING matching motor.
- Small & Light Structure Design: Small (30.1% smaller than XR8 Plus in size) and light (36.5g lighter than XR8 Plus in weight) structure design greatly simplifies the installation of the power system (esp. for vehicles like buggy and touring car with compact chassis).
- High Voltage Built-in BEC: High voltage built-in BEC with an output current of up to 15 Amp and a switchable output voltage of 6V-7.4V allows users to use various high torque and high voltage servos.
- High Reliability & Durability: Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the XR8 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect
- Wide applicability: This XR8 SCT ESC is not only applicable to 1/8th buggies and short-course trucks but also 1/10th short-course trucks, trucks and monster trucks.
- Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
- Built-in chip for making the motor be easily identified by HOBBYWING ESCs. When pairing it with a HW 1/8th sensored ESC (i.e. XR8 SCT/Plus), the motor can work in the “sensored” mode at all times with great output linearity after the identification. The Turbo timing is allowed to be activated for higher output.
- Turbine design implemented by the rotor accelerates the internal air circulation and reduces heat.
- Rebuild-able design (partially rebuild-able) and screw-less motor case for easy routine maintenance effectively prolong the motor life and raise the motor effficiency.
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
ESCSpecs
Scale: 1/8th 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: No
Cont./Peak Current: 140A/880A
Input: 2-4S Lipo/6-12 Cell NiMH
BEC Output: Switch Mode:6V/7.4V,6A
Input Wires: Red-12AWG-200mm*1/Black--12AWG-200mm*1
Output Wires: Blue -12AWG-200mm*1; Yellow-12AWG-200mm*1; Orange -12AWG-200mm*1
Input Connectors: No
Output Connectors: No
Fan Size: 30x30x10mm
Fan Voltage Range: 5-7.4V
Fan Powered by: Powered by BEC
ESC Programing via LCD Program Box: Supported
ESC Programing via WiFi Module: Supported *WiFi Module not included and sold separately: part# HWI30503000
Program Port: FAN/Program Port
Firmware Upgrade: Supported
Size: 54.1x37.2x36.1mm
Weight: 90.5g
Motors: Sensored & Sensorless Brushless Motors
Vehicles: 1/10th SCT/Truck/Monster Truck & 1/8th Buggy/On-road Racing
Motor
kV (no load): 4300
LiPo: 2S
Resistance: 5.2
No-load Current: 4.2A
Motor Diameter: 36mm (1.417in)
Motor Length: 52.5mm (2.067in)
Shaft Diameter: 5mm (0.197in)
Shaft Length: 15mm (0.591in)
Poles: 4
Weight: 187g (6.60oz)
Applications: 1/10 light duty SCT, truck, monster truck- Specs
Product Specifications
Part Number HWI38020421 Scale 1/8th 1/10th Brushed/Brushless Brushless Sensored/Sensorless Sensored Waterproof No Cont./Peak Current 140A/880A Input 2-4S Lipo/6-12 Cell NiMH BEC Output Switch Mode:6V/7.4V,6A Input Wires Red-12AWG-200mm*1/Black--12AWG-200mm*1 Output Wires Blue -12AWG-200mm*1; Yellow-12AWG-200mm*1; Orange -12AWG-200mm*1 Input Connectors No Output Connectors No Fan Size 30x30x10mm Fan Voltage Range 5-7.4V Fan Powered by Powered by BEC ESC Programing via LCD Program Box Supported ESC Programing via WiFi Module Supported *WiFi Module not included and sold separately: part# HWI30503000 Program Port FAN/Program Port Firmware Upgrade Supported Size 54.1x37.2x36.1mm Weight 187g (6.60oz) Motors Sensored & Sensorless Brushless Motors Vehicles 1/10th SCT/Truck/Monster Truck & 1/8th Buggy/On-road Racing kV (no load) 4300 LiPo 2S Resistance 5.2 No-load Current 4.2A Motor Diameter 36mm (1.417in) Motor Length 52.5mm (2.067in) Shaft Diameter 5mm (0.197in) Shaft Length 15mm (0.591in) Poles 4 Applications 1/10 light duty SCT, truck, monster truck - Reviews
