Xerun Zero Spec ESC/Motor Combo JS5 - 17.5T


LOADING IMAGES
Xerun Zero Spec ESC/Motor Combo JS5 - 17.5T
$94.99
This is the Hobbywing 38020402 Xerun Zero Spec ESC/Motor Combo JS5 - 17.5T

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

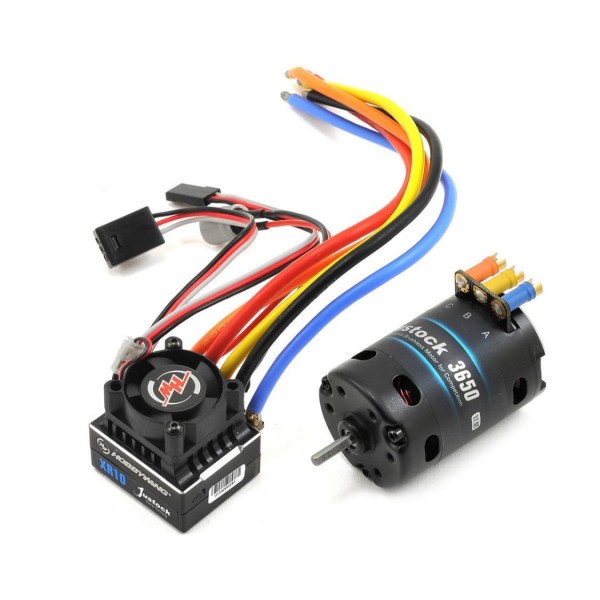

The Hobby Wing XeRun XR10 Justock 1/10 Sensored Brushless Electronic Speed Control and Justock 3650SD 17.5T Brushless Motor Combo

features

  • Zero-timing Design: The XR10 JUSTOCK ESC is specifically designed for Zero-timing racing class. Its timing system has been permanently set to ZERO degree. Using the same branded motor and winding will ensure that every racer will have the same power system for 100% fair and competitive racing.
  • High-Efficient Heat Dissipating System: The modified heatsink, which increases the surface area, combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heatsink for dissipation. With the high-performing detachable cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.
  • Single-button Programming & Factory Reset: The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.
  • Regular Firmware Updates Free of Charge: You can upgrade the XR10 JUSTOCK with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.
  • Small footprint: With its compact design, the XR10 JUSTOCK fits most chassis from 1/10th touring cars, 1/12th pan cars as well as F1.
  • Wide Applicability: This ESC is designed for 1/10th scale touring cars & 1/12th scale pan cars as well as the ever popular F1 series cars for all Zero-timing spec racing, example the ROAR Sportsman class. When pairing this ESC with a 32T motor it will also form a professional and ideal combo for rock crawlers.

Specs

Current: 45A / 260A
Motor Supported: Sensored/Sensorless Brushless Motor
Applications: 1/10, 1/12 on-road & CLUB competition and normal training
Motor Limit with 2S LiPo or 4-6 Cell NiMH: 1/10 on-road≥8.5T, 1/10 off-road≥11.5T
Motor Limit with 3S LiPo or 8-9 Cell NiMH: 1/10 on-road≥13.5T, 1/10 off-road≥17.5T
Input: 2-3S LiPo; 4-9 Cell NiMh
BEC Output: 6V, 2A (Line-mode BEC)
Fan (Included): Powered by the stable BEC output voltage of 6V
Size/Weight: 33.5x28.5x30.5mm/59.8g
ESC Programming: Via the RX Cable (or Throttle Control Cable)
Specs

Product Specifications

Part NumberHWI38020402
Current45A / 260A
Motor SupportedSensored/Sensorless Brushless Motor
Applications1/10, 1/12 on-road & CLUB competition and normal training
Motor Limit with 2S LiPo or 4-6 Cell NiMH1/10 on-road≥8.5T, 1/10 off-road≥11.5T
Motor Limit with 3S LiPo or 8-9 Cell NiMH1/10 on-road≥13.5T, 1/10 off-road≥17.5T
Input2-3S LiPo; 4-9 Cell NiMh
BEC Output6V, 2A (Line-mode BEC)
Fan (Included)Powered by the stable BEC output voltage of 6V
Size/Weight33.5x28.5x30.5mm/59.8g
ESC ProgrammingVia the RX Cable (or Throttle Control Cable)
