Hobbywing XeRun SCT 3800 Brushless Motor


LOADING IMAGES

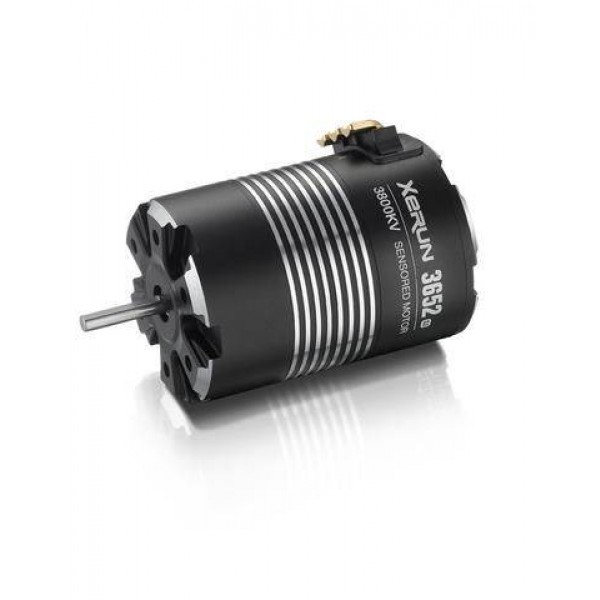

Hobbywing XeRun SCT 3800 Brushless Motor
$79.99
This is a Hobbywing part number 30401058. XeRun SCT 3652 SD G2 Sensored Brushless Motor (3800kv)

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

XeRun SCT 3652 SD G2 Sensored Brushless Motor (3800kv). The Turbo Timing which is widely used (by 2-pole motors) in 1/10 scale on-road racing can be enabled to unleash the utmost power of the motor when pairing the XeRun 3652/3660 G2 with the XeRun XR8 series of ESCs.

Includes:

  • 1x Xerun 3652SD motor
  • 2x sensor wires (80mm / 120mm)
  • 1x pinion gear
  • 1 set of factory premium grade wires

features

  • ROAR approved Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
  • Built-in chip for making the motor be easily identified by HOBBYWING ESCs. When pairing it with an HW sensored ESC (i.e. XR8 SCT/Plus), the motor can work in the “sensored” mode at all times with great output linearity after the identification. The Turbo timing is allowed to be activated for higher output.
  • Magnetic ring mounted on the rotor protects the motor from signal interference and guarantees its super stability in the “sensored” mode.
  • With the mechanical timing adjustable from 20 degrees to 40 degrees, users are able to have different output power.
  • Turbine design implemented by the rotor accelerates the internal air circulation and reduces heat.
  • Rebuildable design (partially rebuild-able) and a screw-less motor case for easy routine maintenance effectively prolong the motor life and raise the motor efficiency.
  • CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
  • New-style “U” solder tabs at the bottom of the motor for easy soldering and wiring.

Specs

kV (no load): 3800Kv
LiPo: 2-3S
Resistance: 0.0059
No-load Current: 3.9A
Motor Diameter: 36mm (1.417in)
Motor Length: 52.5mm (2.067in)
Shaft Diameter: 5mm (0.197in)
Shaft Length: 15mm (0.591in)
Poles: 4
Weight: 192g (6.77oz)
Applications: 1/10 light duty SCT, truck, monster truck

Features Overview

Turbo Timing Technology:
Bi-directional Adjustable Timing The mechanical timing which is adjustable from 20 degrees to 40 degrees (30 degrees by default) meets different power demands of various applications. (Note: bi-direction means CW/CCW)

Advanced Hall Sensing System:
The HOBBYWING-patented "error-free" Hall sensing system adopted by the motor guarantees users the steady operation in the “sensored” mode. A separate high-speed high precision encoder always outputs the clean signals (indicate the position of the rotor) and protects the Hall sensing system from other signal interference.

"Error-free" Hall Sensing System:
A separate magnetic ring guarantees the Hall sensor always outputs correct signals of rotor position

Low Cogging Torque:
The HOBBYWING-patented 4-pole-8-magnet "staggered pole" rotor with the extremely low cogging effect and torque pulsation greatly improves the driving feel around corners.

Low Cogging Torque:
Quality Materials & Excellent Design
The use of double insulated windings (200℃ R-leveled), Japanese NMB bearings, super thin silicon steel sheets and the high-intensity adhesive (300℃) guarantees users the outstanding performance and great durability. (With the strength of the motor is guaranteed,) the wheel hub design adopted by front & rear end bells effectively reduces the motor weight.

Turbine Design:
The turbine design adopted by the rotor actively accelerates internal air circulation, reduces heat and keeps the motor temperature stay at a low level.

Compatible with the XeRun XR8 SCT ESC:
When pairing the XeRun 3652/3660 G2 motor with a Hobbywing XeRun XR8 SCT ESC, the excellent match between ESC and motor will give users large torque plus a very smooth and linear power band.
Specs

Product Specifications

Part NumberHWI30401058
kV (no load)3800Kv
LiPo2-3S
Resistance0.0059
No-load Current3.9A
Motor Diameter36mm (1.417in)
Motor Length52.5mm (2.067in)
Shaft Diameter5mm (0.197in)
Shaft Length15mm (0.591in)
Poles4
Weight192g (6.77oz)
Applications1/10 light duty SCT, truck, monster truck
