- Overview

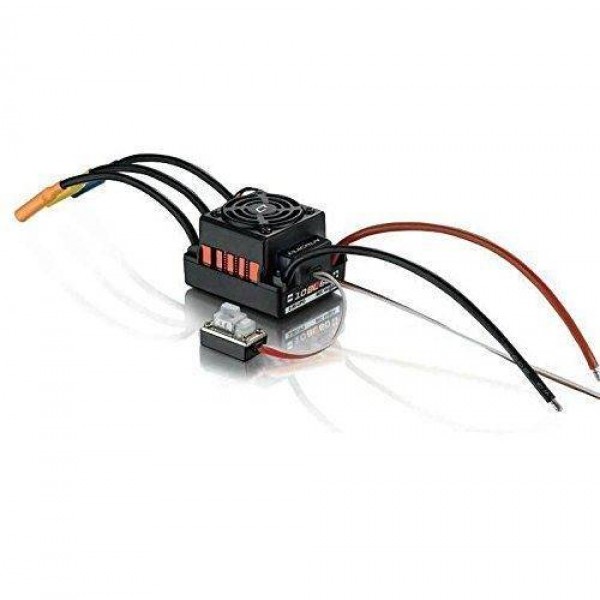

10BL60 Waterproof ESC
Notes:
Please make sure to uninstall the cooling fan before using this ESC in water
Clean and dry it soon after the use for avoiding the connectors get rusty.Cont./Peak Current/ Resistance: 60A/360A/0.001ΩSpecs
Motor Type Supported: Sensorless Brushless Motor
Car Applicable: 1/10 On-road/Off-road/Buggy/Monster
Motor Limit: For 2S Lipo or 6 cells NiMH:
* 1. On-road: 3656-size or smaller motor with the KV<6000
* 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000
Motor Limit For 3S Lipo or 9 cells NiMH:
* 1. On-road: 3656-size or smaller motor with the KV<4000
* 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000
Battery: 4-9 Cells NiMH / 2-3S Lipo
BEC Output: 6V/2A (Linear Mode)
Size/ Weight: 48.5(L)*38(W)*32(H) / 90g
External Program Port: Available
Working voltage of Fan: From battery directly without regulating- Specs
Product Specifications
Part Number HWI30107100 Cont./Peak Current/ Resistance 60A/360A/0.001Ω Motor Type Supported Sensorless Brushless Motor Car Applicable 1/10 On-road/Off-road/Buggy/Monster Motor Limit For 2S Lipo or 6 cells NiMH:
* 1. On-road: 3656-size or smaller motor with the KV<6000
* 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000Motor Limit For 3S Lipo or 9 cells NiMH
* 1. On-road: 3656-size or smaller motor with the KV<4000
* 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000Battery 4-9 Cells NiMH / 2-3S Lipo BEC Output 6V/2A (Linear Mode) Size/ Weight 48.5(L)*38(W)*32(H) / 90g External Program Port Available Working voltage of Fan From battery directly without regulating - Reviews
