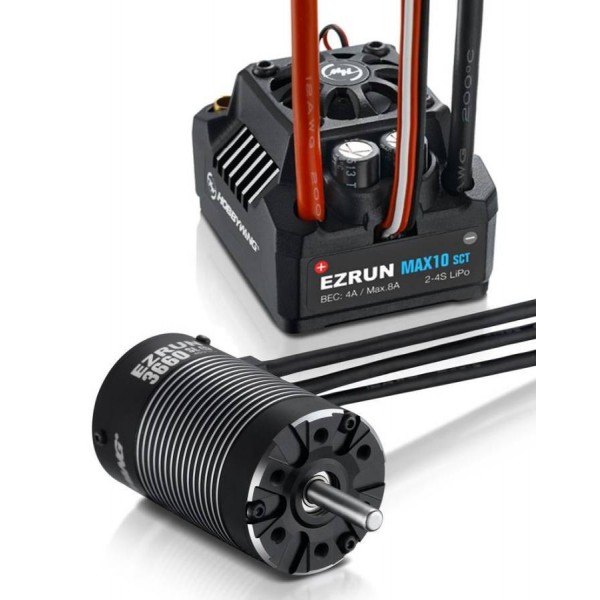

Hobbywing EZRun MAX10 Waterproof SCT Brushless ESC with 3200kV 3660SL Motor Combo

This is the Hobbywing Waterproof EZRun MAX10 SCT Brushless ESC with 3200kV 3660SL Motor Combo, ideal for 1/10 scale 4WD trucks and monster truck vehicles

• Continuous Current: 120A
• Peak Current: 830A
• Motor Type: Sensorless Brushless Motor
• Applications: 1/10th Short Course Trucks, Stadium Trucks, Monster Trucks
• Motor Limit:
• 2S LiPo: KV ≤6000
• 3S LiPo: KV ≤4000
• 4S LiPo: KV ≤3000
• LiPo/NiMH Cells: 6-12S NiMH, 2-4S LiPo
• BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode BEC)
• Size (LxWxH): 49.0x39.5x34.7mm
• Weight: 105g
• Programming Port: FAN/PRG Port
• Motor Specifications:
• kV: 3200
• LiPo: 2-3S
• Resistance: 0.0083
• No-Load Current: 4.9A
• Motor Diameter & Length: 36mm & 60mm
• Shaft Diameter & Length: 5mm & 18.5mm
• Pole: 4
• Weight: 262 grams
• High Reliability & Durability: Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
• Applicable for All Weather Conditions: The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
• High Voltage Built-in BEC: The MAX10 SCT has adopted the world's first HV built-in BEC with an output current of up to 3 Amps and a switchable output voltage of 6-7.4V. The high voltage BEC is designed to handle today's high voltage servos on demand used by 1/10 scale vehicles.
• Maintenance Free: The ESC, minus the cooling fan, is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle big jumps and landings on hard surfaces.
• Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
• Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3660 G2 with a EZRUN MAX10 SCT ESC.
• O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
