- Overview

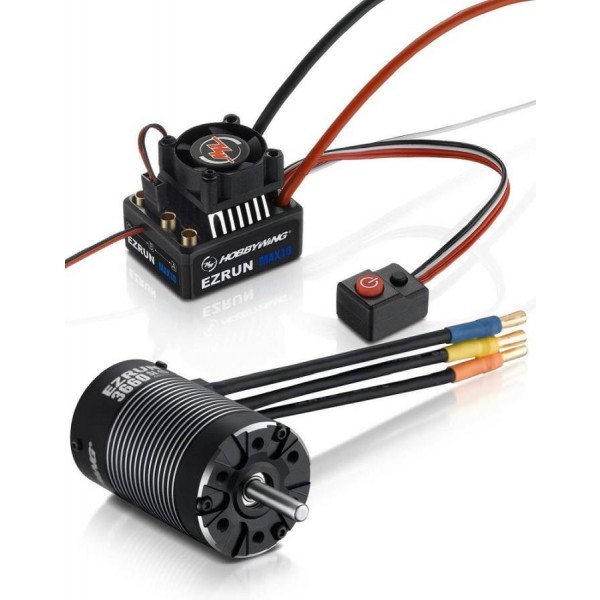

EZRUN MAX10 Combo (2-3S) Brushless Motor 5400KV for 1/10th Buggies, On-road, Light-weight 2WD SCT, Trucks, and Monster Trucks
Includes:
- 1 x Ezrun Max10 ESC
- 1 x Ezrun 3652 SL brushless motor
- Supportive accessories (double side tape, etc)
Cont./Peak Current: 60A / 450ASpecs
Motor Type: Sensorless/Sensored Brushless Motor(only in sensorless mode)
Applications: 1/10th Buggy, On-road, and Light-weight 2WD SCT/Truck/Monster Truck
Brushless Motor Limit with 2S: LiPo/ 6S NiMH: KV≤6000 (3652 size motor)
Brushless Motor Limit with 3S: LiPo/ 9S NiMH: KV≤4000 (3652 size motor)
LiPo /NiMH Cells: 2-3S LiPo / 6-9 Cell NiMH
BEC Output: 6V/7.4V Switchable, Continuous Current of 3A (Switch-mode)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.4V
Input End: No Connectors
Output End: 3.5mm Female Gold Connectors (pre-soldered onto the PCB of the ESC)
Size/Weight: 39.4 x 32.8 x 23.1mm (w/o Fan) / 67.8g
Programming Port: FAN/PRG Port- Specs
Product Specifications
Part Number HWI38010205 Cont./Peak Current 60A / 450A Motor Type Sensorless/Sensored Brushless Motor(only in sensorless mode) Applications 1/10th Buggy, On-road, and Light-weight 2WD SCT/Truck/Monster Truck Brushless Motor Limit with 2S LiPo/ 6S NiMH: KV≤6000 (3652 size motor) Brushless Motor Limit with 3S LiPo/ 9S NiMH: KV≤4000 (3652 size motor) LiPo /NiMH Cells 2-3S LiPo / 6-9 Cell NiMH BEC Output 6V/7.4V Switchable, Continuous Current of 3A (Switch-mode) Cooling Fan Powered by the stable BEC voltage of 6V/7.4V Input End No Connectors Output End 3.5mm Female Gold Connectors (pre-soldered onto the PCB of the ESC) Size/Weight 39.4 x 32.8 x 23.1mm (w/o Fan) / 67.8g Programming Port FAN/PRG Port - Reviews
