- Overview

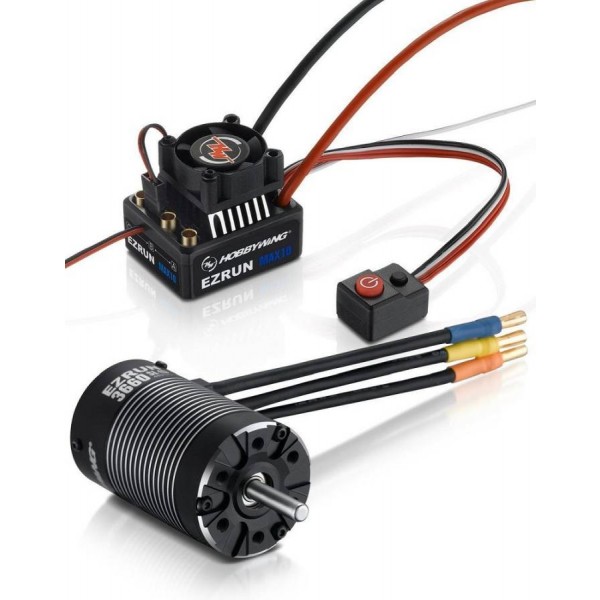

This is the Hobbywing EZRun MAX10 4000kv Sensorless Brushless ESC with 3652SL Motor Combo for 1/10th Buggies, On-road, Light-weight 2WD SCT, Trucks, and Monster Trucks
features
- Capacitor Thermal Protection: The capacitor thermal protection first implemented in the MAX10 will effectively protect capacitors from diaelectric failure causing irreversible damage to the ESC due to overload.
- High Reliability & Durability: Built with high-quality components and coupled with cutting-edge firmware, the MAX10 is able to deliver unmatched power and performance for even the most extreme racing applications, but it is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
- Applicable to All Weather Conditions: The waterproof and dust-proof design allows the MAX10 to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.
- Regular Firmware Updates Free of Charge: You can upgrade the MAX10 with the Hobbywing WiFi/USB LINK software, a WiFi module/ LED or LCD program box and a smartphone/laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.
- Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
- Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3652 G2 with a EZRUN MAX10 SCT ESC.
- O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
- Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- Excellent match between EZRUN 3652 G2 with EZRUN MAX10 SCT guarantees users large torque plus a very smooth and linear power band.
3652SL Motor Specifications:Specs
KV: 4000
LiPo: 2-3S
R. (Ω): 0.006
No-load Current: 5.2A
Timing (deg.): 0
Motor Diameter & Length: Φ=36 / L=52
Shaft Diameter & Length: Φ=3.17 / L=18.5
Pole: 4
Weight (g): 216
MAX10 ESC Specifications:
- Scale: 1/10th
- Brushed/Brushless: BL
- Sensored/Sensorless: SL
- Waterproof: Yes
- Cont./Peak Current: 60A/450A
- Input Voltage: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Switch Mode: 6V/7.4V,3A
Wires & Connectors
- Input Wires: Red-14AWG-200mm*1/Black-14AWG-200mm*1
- Output Wires: Black-14AWG-200mm*3
- Input Connectors: No
- Output Connectors: 3.5 Bullet Connectors (Female)
- Note: All the wire length above is the original length not the length you see from the outside.
Fan
- Size: 25.0x25.0x10.0mm
- Voltage Range: 5-7.4V
- Powered by: BEC
ESC Programing via
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Program Port: PRG/Fan Port
- Firmware Upgrade: Supported
Size & Weight
- Size: 39.4x32.8x23.1mm
- Weight: 67.8g
Applications
- Motors: SL BL Motors/SD BL Motors (only in SL mode)
- Vehicles: 1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck
- KV Rating/T Count: 2S LiPo: KV≤6000;3S LiPo: KV≤4000 (3652 Series of Motors)- Specs
Product Specifications
Part Number HWI38010204 3652SL Motor Specifications KV 4000 LiPo 2-3S R. (Ω) 0.006 No-load Current 5.2A Timing (deg.) 0 Motor Diameter & Length Φ=36 / L=52 Shaft Diameter & Length Φ=3.17 / L=18.5 Pole 4 Weight (g) 216 MAX10 ESC Specifications - Scale 1/10th - Brushed/Brushless BL - Sensored/Sensorless SL - Waterproof Yes - Cont./Peak Current 60A/450A - Input Voltage 2-3S LiPo/6-9 Cells NiMH - BEC Output Switch Mode: 6V/7.4V,3A - Input Wires Red-14AWG-200mm*1/Black-14AWG-200mm*1 - Output Wires Black-14AWG-200mm*3 - Input Connectors No - Output Connectors 3.5 Bullet Connectors (Female) - Note All the wire length above is the original length not the length you see from the outside. - Size 39.4x32.8x23.1mm - Voltage Range 5-7.4V - Powered by BEC - SET Button on ESC Supported - LED Program Box Supported - LCD Program Box Supported - WiFi Module Supported - Program Port PRG/Fan Port - Firmware Upgrade Supported - Weight 67.8g - Motors SL BL Motors/SD BL Motors (only in SL mode) - Vehicles 1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck - KV Rating/T Count 2S LiPo: KV≤6000;3S LiPo: KV≤4000 (3652 Series of Motors) - Reviews
