- Overview

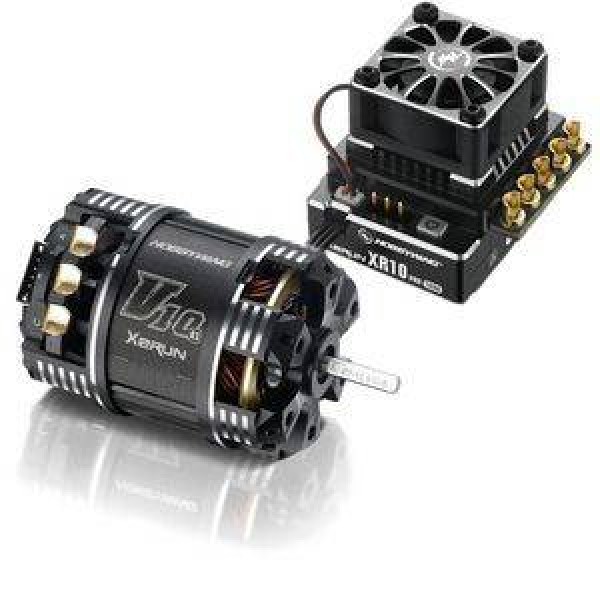

This is the Hobbywing XR10 Pro 2830Kv 17.5T Sensored Brushless ESC / V10 G3 Motor combo, ideal for 1/10 scale
features
- 10 select-to-use profiles including zero-timing/blinky mode, modified mode, stock mode applicable to all 1/10th touring car, pan car and buggy racing.
- Built-in switch mode BEC with a maximum output of 4A and voltage adjustable between 6V and 7.4V for usage with high voltage servos.
- Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC.
- Super Lightweight: The G3 Modified & Stock motors only weigh 161g and 132g respectively; the weights are reduced by about 11% & 21% when comparing with the V10 G2 motor.
- Re-buildable Structure: The detachable structure design for regular cleaning & maintenance will effectively prolong the service life of the motor and retain its efficiency.
- High-quality Components: The use of high-performance stator core (/laminations), heat(200℃)-resistant pure copper wire, heat(200℃)-resistant rotor with strong structure, international top brand high-precision and high strength bearings, and copper solder tabs with super current endurance will guarantee excellent performance and great durability.
ESC:Specs
ID: XR10 PRO ESC 30112600 (Black)
Scale: 1/10th Brushless Sensored ESC
Cont./Peak Current: 160A/1200A
Power input: 2-3S LiPo/4-9 Cell NiMH
BEC output: Swich Mode:6V/7.4V,4A
Wire input: Black-12AWG-200mm*2
Wire output: Black-12AWG-200mm*3
Size: 37.5x30.9x31.6mm (w/Fan & Fan Shroud)
Weight: 95g(w/ Wires)
Cooling Fan: 25.0x25.0x10.0mm
Voltage Range: 5V-7.4V (powered by BEC)
Application: 1/10th Touring Car, Buggy, Drift Car, F1; 1/8th, 1/10th Rock Crawler
Motor: Brushless sensored motor
KV Rating/T Count:
2S LiPo/6S NiMH: (Touring Car) T≥3.5T, (Buggy) T≥4.5T.
3S LiPo/9S NiMH: (Touring Car) T≥6.5T, (Buggy) T≥8.5T.
Motor:
Pole Count: 2
KV Rating: 2830
LiPo Cells: 2-3S
No Load Current: 3.9A
Max Power Output: 152W
Amps at Max Power Output: 42A
Outer Diameter: 35.9mm
Length: 50.0mm
Shaft Diameter: 3.17mm
Shaft Length: 14mm
Weight: 131g
Rotor: 7.3-12.5-U
Timing: 30-60 degrees (adjustable)
Applications: 1/10 stock class on road racing- Specs
Product Specifications
Part Number HWI38020236 ESC ID XR10 PRO ESC 30112600 (Black) Scale 1/10th Brushless Sensored ESC Cont./Peak Current 160A/1200A Power input 2-3S LiPo/4-9 Cell NiMH BEC output Swich Mode:6V/7.4V,4A Wire input Black-12AWG-200mm*2 Wire output Black-12AWG-200mm*3 Size 37.5x30.9x31.6mm (w/Fan & Fan Shroud) Weight 131g Cooling Fan 25.0x25.0x10.0mm Voltage Range 5V-7.4V (powered by BEC) Application 1/10th Touring Car, Buggy, Drift Car, F1; 1/8th, 1/10th Rock Crawler Motor KV Rating/T Count 2S LiPo/6S NiMH (Touring Car) T≥3.5T, (Buggy) T≥4.5T. 3S LiPo/9S NiMH (Touring Car) T≥6.5T, (Buggy) T≥8.5T. Pole Count 2 KV Rating 2830 LiPo Cells 2-3S No Load Current 3.9A Max Power Output 152W Amps at Max Power Output 42A Outer Diameter 35.9mm Length 50.0mm Shaft Diameter 3.17mm Shaft Length 14mm Rotor 7.3-12.5-U Timing 30-60 degrees (adjustable) Applications 1/10 stock class on road racing - Reviews
Customer Reviews 1 item(s)
- Lots of programming options
-
This product was recommended by the salesman for my Team Factory RC10B6.1 Factory lite. Works well. It's highly recommended that you purchase the program card or get the Wi-Fi Express module to make the set-up easier and quicker
Quality Price
