- Overview
Overview

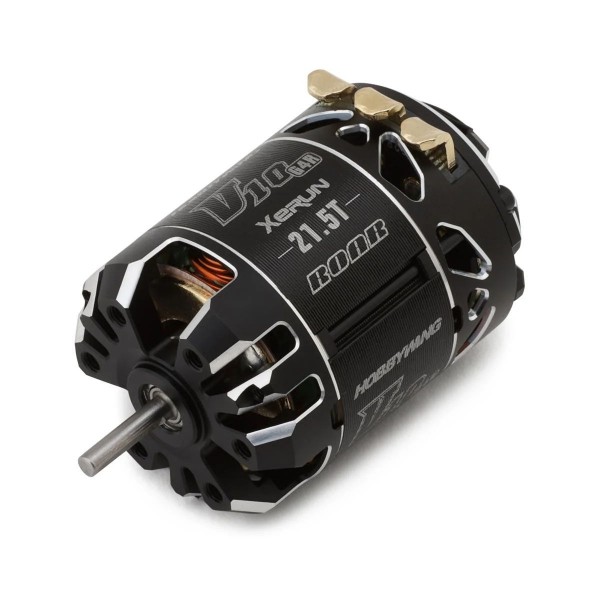

Specially designed for 1/10 and 1/12 ROAR Stock racing, this Xerun V10 G4R is equipped with a high-performance stator core, built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness, innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation and dual sensor interface design to meet various wiring/layout requirements! Making this Xerun V10 G4R the ultimate ROAR approved weapon of choice for 1/10 and 1/12 Stock racing
Includes:
- (1) Xerun V10 G4R Competition Stock Brushless Motor
- (1) User Manual
Notes:
Due to differences in competition rules, there are two versions of the motor, standard (G4) version for EFRA rules and ROAR (G4R) version for ROAR rules.
features
- Specially designed for 1/10 -1/12 Stock racing
- High-performance stator core
- Built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness
- Innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation
- Rear end of the motor is a big opening structure to further improve the heat dissipation effect
- Dual sensor interface design to meet various wiring/layout requirements
- Widened copper bar spacing for easier wire soldering
- High precision and high strength bearings, and copper solder tabs
ROAR Approved: YesSpecs
Turns: 21.5T
kV Rating: 2600kV
Outer Diameter: 35.8mm
Length: 51.3mm
Shaft Diameter: 3.175mm
Weight: 158g
Poles: 2
Front Bearing: 9x4x4mm
Rear Bearing: 8x3x4mm
No Load Current: 4.0A
Adjustable Timing: 20-60 degrees
Applications: 1/10 & 1/12 Stock Racing
Input Voltage: 1-3S LiPo (7.4V)- Specs
Product Specifications
Part Number HWI30401744 ROAR Approved Yes Turns 21.5T kV Rating 2600kV Outer Diameter 35.8mm Length 51.3mm Shaft Diameter 3.175mm Weight 158g Poles 2 Front Bearing 9x4x4mm Rear Bearing 8x3x4mm No Load Current 4.0A Adjustable Timing 20-60 degrees Applications 1/10 & 1/12 Stock Racing Input Voltage 1-3S LiPo (7.4V) - Reviews
