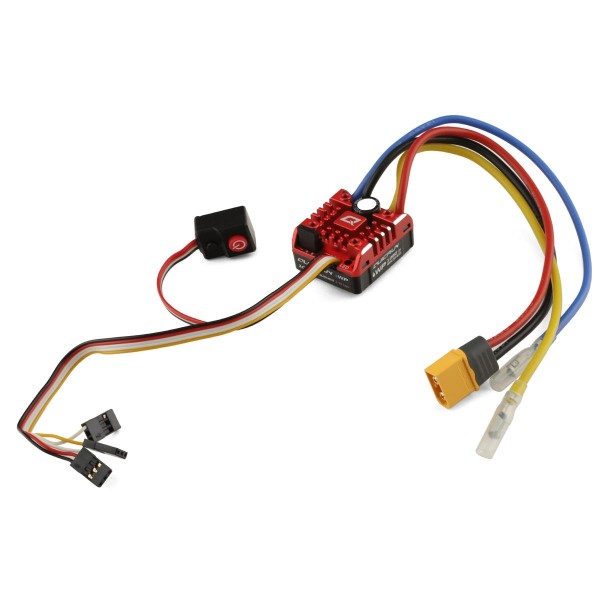

The Hobbywing QuicRun Waterproof 1080 G2 Brushed Crawling ESC is specifically engineered to deliver exceptional performance in the Crawler ESC category. With its compact design and a range of updates, this ESC stands out from the competition. One noteworthy feature is the "Real Car Mode," which allows users to engage forward or reverse effortlessly by using an idle channel on their transmitter. This mode also adds a touch of authenticity to your RC experience by applying brake when the throttle is released.
Includes:
- (1) 1080 G2 ESC
- (1) Manual
features
- Water-proof and dust-proof, suitable for all weather races.
- Small size, with built-in capacitor module.
- 100% Waterproof
- Adjust drag brake in real time
- Optimized software allows for cooler operating temperature when compared to prior 1080 ESCs
- Aluminum case for great heat dissipation
- Enhanced BEC to meet the needs of more modern servos
- 15 Adjustable parameter items to suite your driving needs
Suggested Application: 1/10 Rock CrawlersSpecs
Motor Type: Brushed
Input Voltage: 2-3S LiPo
Continuous Current: 80A
Burst Current: 400A
BEC Output:
Voltage: 6/7.4/8.4V
Continuous Current: 4A
Peak Current: 6A
Motor Connectors: 4.0mm Bullets
Battery Connectors: XT60
Motor Wire: 14AWG (200mm long)
Battery Wire: 14AWG (200mm long)
Length: 1.46in (37.2mm)
Width: 1.25in (31.9mm)
Height: 0.72in (18.4mm)
Weight: 2.47oz (70.2g)
Programming: Onboard USB / Remote Programmer- Specs
Product Specifications
Part Number HWI30120202 Suggested Application 1/10 Rock Crawlers Motor Type Brushed Input Voltage 2-3S LiPo Continuous Current 4A Burst Current 400A BEC Output Voltage 6/7.4/8.4V Peak Current 6A Motor Connectors 4.0mm Bullets Battery Connectors XT60 Motor Wire 14AWG (200mm long) Battery Wire 14AWG (200mm long) Length 1.46in (37.2mm) Width 1.25in (31.9mm) Height 0.72in (18.4mm) Weight 2.47oz (70.2g) Programming Onboard USB / Remote Programmer - Reviews
