- Overview

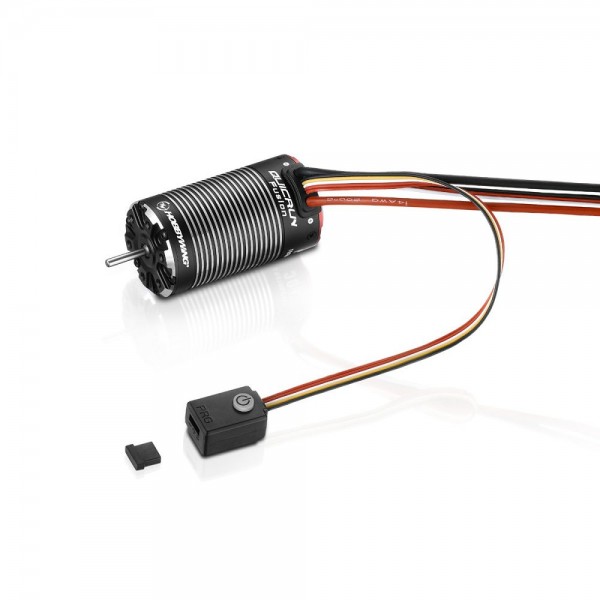

This is a HobbyWing part #HWI30120400, QuicRun Fusion FOC System (2in1) 1200kV Brushless Motor with Built-in ESC
Includes:
- (1) FOC motor w/ built-in ESC
- (1) Factory installed XT60 plug
- (1) Decal
- (1) Heatsink kit, double-sided tape, and zip ties.
- (1) LED Program Card
- (1) Product Manual
features
- The integrated design of the ESC and the motor greatly reduces the overall volume and weight, and makes the layout and wiring of car frame simpler and more convenient.
- The FOC driving mode, low speed torque is strong.
- Smooth running at extreme low speed, which is far superior to the common sensored brushless power system, even better than the brushed power.
- Thanks to the sine wave driving mode, the whole system has high efficiency, small heat, and effectively extends the endurance time; and the motor runs more quietly and soft.
- The protection grade of the whole set of power is IP67, with excellent waterproof and dustproof performance. Under various weather conditions, the whole set of power can easily deal with the complex road surface containing silt, ice and snow, and water.
- Intelligent torque output and speed closed-loop control, fully experience the cruise control and steep slope slow descent function of 1: 1 vehicle, making the control handy.
- Active drag brake force adjustment, providing unprecedented parking capacity on slope.
- With strong built-in switch mode BEC, the continuous current is up to 4A, and support switch between 6V and 7.4v, easy to drive various powerful steering servo and high-voltage steering servo.
- Equipped with advanced and safe electronic switch to avoid reed stuck and contact rusted of traditional mechanic switch in dusty and damp environment, and automatic close of mechanic switch due to fierce impact.
- Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
- It supports LED setting box to set ESC parameters, and has independent parameter setting interface, which is integrated on electronic switch, making setting parameters more convenien
BEC: YesSpecs
BEC Continous Current: 4A
BEC Type: Switching
BEC Voltage: 6V/7.4V
Brakes: Programmable
Connector Type: XT-60
Input Voltage: 2-3S Lipo, 6-9 Cell NiMH
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 160A
Maximum Continuous Current: 40A
Motor Type: Brushless
Number of Poles: 4
Outer Diameter: 1.41" (36 mm)
Product Length: 2.5" (64 mm)
Product Weight: 7.40oz (210g)
Programmable: Yes
Reverse: Yes
RPM/Volt (Kv): 1200Kv
Shaft Diameter: 0.125" (3 mm)
Shaft Length: 0.63" (16 mm)
Speed Control: Included
Water-Resistant: Yes
Wire Gauge: 14 AWGIntegrated design of Hobbywing's patent technology:Features Overview
The integrated design of the ESC makes the overall volume is only the size of 550 motors, and the overall weight is only 210g, which makes the layout and wiring of the car frame simpler and more beautiful, perfectly solves the difficulty of wiring due to the small internal space of the rock crawler.
Intelligent Torque Output & Speed Closed-loop Control for Easy Control:
The Fusion system combined with Intelligent Torque output and closed-loop speed control means the power system will maintain the motor’s Torque level and RPM as the vehicle conditions change. Uphill, downhill, under load, the intelligent output torque makes the operation so simple. Note:If the“RPM/Throttle Matching” be set to “Disabled”, no intelligent torque output & speed closed-loop control, just like the brushed system
FOC (Field-oriented Control) for Super Linearity & High Torque & Extreme Mute:
The Fusion system adopts FOC driving mode, low speed torque is strong. It runs smoothly at very low speed, outstripping ordinary sensored power system, even better than a brushed power system. Moreover, the motor is extremely silent when it is running. The driving noise which annoys the driver disappears. It is the best choice for a rock crawler.
Waterproof: Applicable to All Weather & Track Conditions:
The IP-67 waterproof of the whole power has an excellent waterproof and dustproof performance. The whole power can easily drive on the muddy, sandy, icy, snowy, and water track under various weather conditions.
High Driving Efficiency for Long Battery Life:
The whole power adopts FOC driving which has high efficiency and less heat, dramatically extends the Runtime time. Benefitting from the sine wave driving mode, the motor runs more silently and softly.
Professional Drag Brake Adjustments & Super Parking Capacity:
8 gears of drag brake force and 9 gears of drag brake rate can meet different car models, different fields, and different controlling habits. The maximum drag brake force is about twice that of ordinary brushless power of the same size, providing super strong parking capacity on a slope.
Advanced and Secure Electronic Switch:
Compare to standard on/off switches, the dust, dirt, and waterproof electronic switch housing ensures a long reliable life for your power system, will not suffer from the problems that reed stuck and contact rust frequently happed in dusty and damp environment and the problem that mechanical switch closes automatically caused by a fierce impact.- Specs
Product Specifications
Part Number HWI30120400 BEC Yes BEC Continous Current 4A BEC Type Switching BEC Voltage 6V/7.4V Brakes Programmable Connector Type XT-60 Input Voltage 2-3S Lipo, 6-9 Cell NiMH Low-Voltage Cutoff Programmable Yes Maximum Burst Current 160A Maximum Continuous Current 40A Motor Type Brushless Number of Poles 4 Outer Diameter 1.41" (36 mm) Product Length 2.5" (64 mm) Product Weight 7.40oz (210g) Programmable Yes Reverse Yes RPM/Volt (Kv) 1200Kv Shaft Diameter 0.125" (3 mm) Shaft Length 0.63" (16 mm) Speed Control Included Water-Resistant Yes Wire Gauge 14 AWG - Reviews
