- Overview

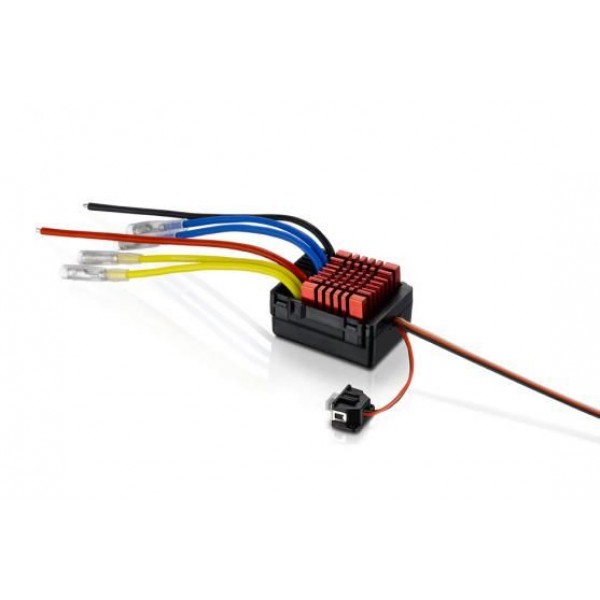

This is the Hobbywing part #30120301, QR880 DUAL Brushed ESC: Suitable for 1/8 and 1/10 All purpose. Water-proof and dust-proof for all weather races.
features
- Fully waterproof design for all conditions. (Please clean and dry it after use for avoiding rusty connectors).
- HOBBYWING patented copper heat-conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heat sink for great heat dissipation.
- Built-in switch-mode BEC with cont. current of 4A.
- Tunable drag brake and drag brake rate for different vehicles, tracks, and control feel.
- Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
- 9 levels of acceleration/ punch from soft to aggressive for different vehicles, tires and tracks.
- Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force.
- Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
- Separate programming port to easily connect the LED program card (purchase separately) to the ESC.
- ESC programming via HOBBYWING LED Program Card (purchase separately).
Cont./Peak Current: 80A/400ASpecs
Motor Type Supported: Brushed Motor (540, 550, 775 Size Motor)
Applicable Car: Various 1/10th & 1/8th Vehicles
Motor Limits:
- Brushed Motor Limit with 2S LiPo /6S NiMH: ≥ 12T or RPM<30000@7.4V (540, 550 Size Motors)
- Brushed Motor Limit with 3S LiPo /9S NiMH: ≥ 18T or RPM<20000@7.4V (540, 550 Size Motors)
- Brushed Motor Limit with 4S LiPo /12S NiMH: ≥ 24T or RPM<15000@7.4V (540, 550 Size Motors)
LiPo / NiMH Cells: 2-4S LiPo or 5-12S NiMH
BEC Output: 6V@4A (Switch-Mode)
Connectors: Input End: No Connectors; Output End: 4.0mm Female Bullet Connectors
Size/ Weight: 45.9*34.7*26.5mm/ 75g
Programming Port: Separate Port
Waterproof: WaterproofProduct Videos
- Specs
Product Specifications
Part Number HWI30120301 Cont./Peak Current 80A/400A Motor Type Supported Brushed Motor (540, 550, 775 Size Motor) Applicable Car Various 1/10th & 1/8th Vehicles Motor Limits - Brushed Motor Limit with 2S LiPo /6S NiMH ≥ 12T or RPM<30000@7.4V (540, 550 Size Motors) - Brushed Motor Limit with 3S LiPo /9S NiMH ≥ 18T or RPM<20000@7.4V (540, 550 Size Motors) - Brushed Motor Limit with 4S LiPo /12S NiMH ≥ 24T or RPM<15000@7.4V (540, 550 Size Motors) LiPo / NiMH Cells 2-4S LiPo or 5-12S NiMH BEC Output 6V@4A (Switch-Mode) Connectors Input End: No Connectors; Output End: 4.0mm Female Bullet Connectors Size/ Weight 45.9*34.7*26.5mm/ 75g Programming Port Separate Port Waterproof Waterproof - Reviews
