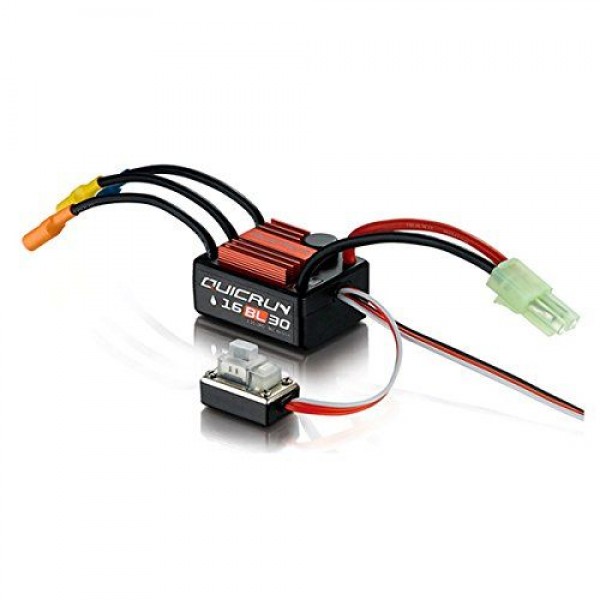

- Overview
features
- Water-proof and dust-proof for all-weather races
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment
- 9 steps of acceleration (/punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks
- Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection
- One-button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings. One-button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings
- Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use
- Cont./Peak Current/ Resistance: 30A/180A/0.002Ω
- Motor Type Supported: Sensorless Brushless Motor
- Car Applicable: 1:18 & 1:16 On-road/Off-road/Buggy/Monster
- Motor Limit for 2S LiPo or 6 cell NiMH:
- 1. On-road: 2435-size or smaller motor with the KV<8000
- 2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000
- Motor Limit for 3S LiPo or 9 cell NiMH:
- 1. On-road: 2435-size or smaller motor with the KV<5500
- 2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500
- Battery: 4-9 Cell NiMH / 2-3S LiPo
- BEC Output: 6V/1A (Linear Mode)
- Size/ Weight: 36(L)*28(W)*16(H) / 38g
- External Program Port: Not Available
- Working voltage of Fan: No cooling fan
- Specs
Product Specifications
Part Number HWI30110000 - Reviews
