- Overview
Overview
Intelligent torque and speed control for precise driving maneuvers!

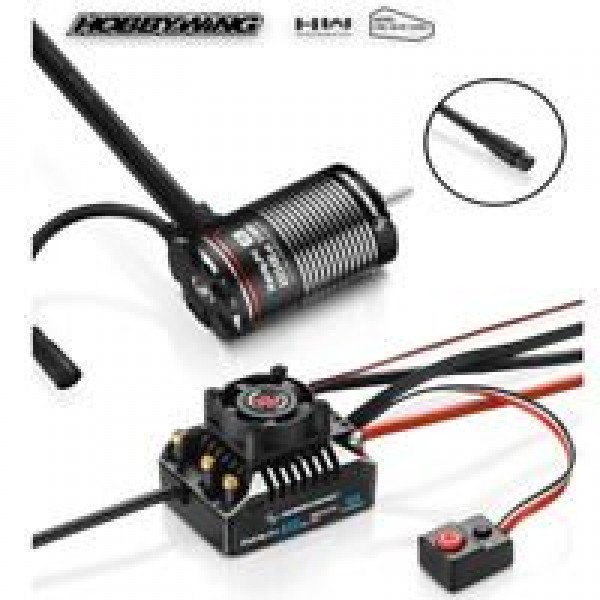

The XeRun AXE "R2" brushless controller, connected to an associated AXE "R2" motor, automatically regulates torque and speed depending on the load requirement. This technology is also called FOC (Field-Oriented Control) and is responsible for this really great driving experience.
The XeRun AXE "R2" 540 motor with its 3.175mm shaft and 2300KV also contributes to this. With the built in staggered pole rotor design patented by Hobbywing, the 4-pole motor has hardly any detent torque and runs smoothly under all conditions. With the professional handbrake function, the car is now 100% immobile, even on the steepest slopes. The motor and controller are both connected via an improved waterproof, special sensor plug.
The ESC also offers extensive setting options for all professionals. Connected via Bluetooth and APP, relevant data can be read out, settings changed or firmware updates carried out, everything is simple and easy.Includes:
- (1) ESC
- (1) Motor
- (1) Manual
- ESC -Specs
Type: Brushless FOC
Current cont./peak 80A/480A
Cells: 2s-3s LiPo, 6-9 Zellen NiMH
Motor Limits: Only XeRun-AXE "R2" Motors
BEC: 6V/7.4V - 6A
Programming: Bluetooth and APP "HW LINK"
Waterproof: Yes
Dimensions: 47.4 x 36.2 x 26.5mm
Weight: 108g
Application: 1/10 Rock Crawler
- Motor -
Type: Sensored Brushless FOC
Poles: 4
KV Rating: 2300KV
LiPo Cells: 2-3s
No-Load Current: 2.5A
Outer Diameter: 36.0mm
Length: 49.8mm
Shaft Diameter: 3.175mm
Shaft Length: 16mm
Waterproof: Yes
Weight: 185g
Application: 1/10 Rock Crawler- Specs
Product Specifications
Part Number HWI38020318 Type Sensored Brushless FOC Cells 2s-3s LiPo, 6-9 Zellen NiMH Motor Limits Only XeRun-AXE "R2" Motors BEC 6V/7.4V - 6A Programming Bluetooth and APP "HW LINK" Waterproof Yes Dimensions 47.4 x 36.2 x 26.5mm Weight 185g Application 1/10 Rock Crawler Poles 4 KV Rating 2300KV LiPo Cells 2-3s No-Load Current 2.5A Outer Diameter 36.0mm Length 49.8mm Shaft Diameter 3.175mm Shaft Length 16mm - Reviews
