- Overview
Overview

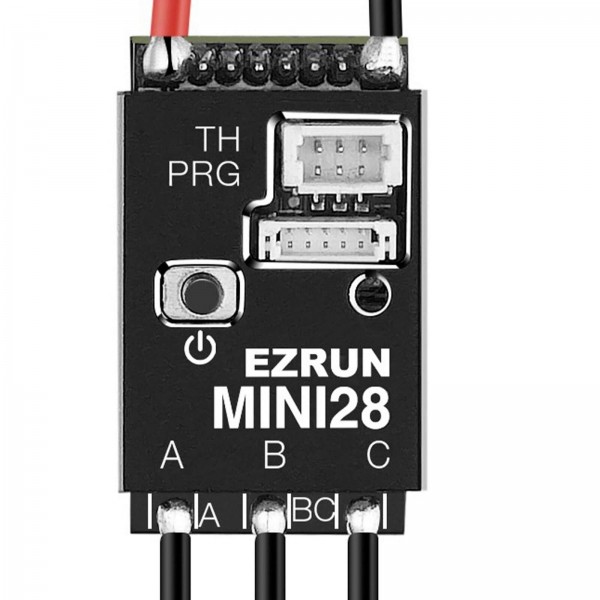

Powerful software and hardware is built into the Mini28 ESC, features new programmable parameters and is optimized for 1/28th competitions.
Includes:
- (1) EZRUN MINI28 Brushless ESC
- (1) Sensor Wire
- (1) Manual
features
- Extremely Small Footprint
- Fully Alloy Heat Sink
- Can Be Switched Between "Blinky" and "Modified" Modes
- Equipped with 26 Adjustable Parameters
- Built-In BEC Can Withstand Up To 8 Amps Of Current
Product Width: 0.55" (14 mm)Specs
BEC: Yes
BEC Voltage: 6V / 7.4V User Selectable
Input Voltage: 2S LiPo
Product Height: 0.46" (12 mm)
Maximum Burst Current: 80A
Maximum Continuous Current: 30A
Adjustable Timing: Yes
Brakes: Integral with ESC
Programmable: Yes
Forward: Yes
Reverse: Yes
Wire Gauge: 20 AWG
Product Length: 0.89" (23 mm)
Auto Cutoff: Yes
BEC Continous Current: 3.5A
Low-Voltage Cutoff Programmable: Yes
Product Weight: 0.17 oz (5 g) without wires
Water-Resistant: No
Amperage: 30AAdjustable Parameters:Features Overview
The ESC is equipped with 26 adjustable parameter items; including PWM frequency, brake frequency, softening, boost, turbo, and etc. The software parameters are inherited from the proven world championship winning XR10 pro series of ESCs. They can accurately adjust the power demand and let users enjoy the ultimate control experience.
Petite And Lightweight:
The ESC is extremely small (22mm by 14mm) and light in weight (5g). The shape is designed for ease of access and fitment. Essentially, this is an important factor for a 28th scale size mini-z racing car.
Built-In BEC:
The ESC has a built-in BEC which can support a maximum output current of up to 8A and the output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.
High Power, Low Temperature:
The fully-alloy heat sink ensures that the ESC is able to dissipate heat and operate at a healthy temperature range while the maximum output current can be up to 30A.
Built-In Dual Application Mode:
The ESC is equipped with two modes of application usage; The Zero-Timing which is more commonly known as “blinky” mode and the “modified” mode which allows power hungry users to increase additional turbo timing in the software.
OTA Module Box And Hobbywing App:
Simple and convenient to use. Parameter settings, firmware upgrading and other operations can be established using Hobbywing’s OTA Bluetooth module and your mobile phone via the Hobbywing app.- Specs
Product Specifications
Part Number HWI30101300 Product Width 0.55" (14 mm) BEC Yes BEC Voltage 6V / 7.4V User Selectable Input Voltage 2S LiPo Product Height 0.46" (12 mm) Maximum Burst Current 80A Maximum Continuous Current 30A Adjustable Timing Yes Brakes Integral with ESC Programmable Yes Forward Yes Reverse Yes Wire Gauge 20 AWG Product Length 0.89" (23 mm) Auto Cutoff Yes BEC Continous Current 3.5A Low-Voltage Cutoff Programmable Yes Product Weight 0.17 oz (5 g) without wires Water-Resistant No Amperage 30A - Reviews
