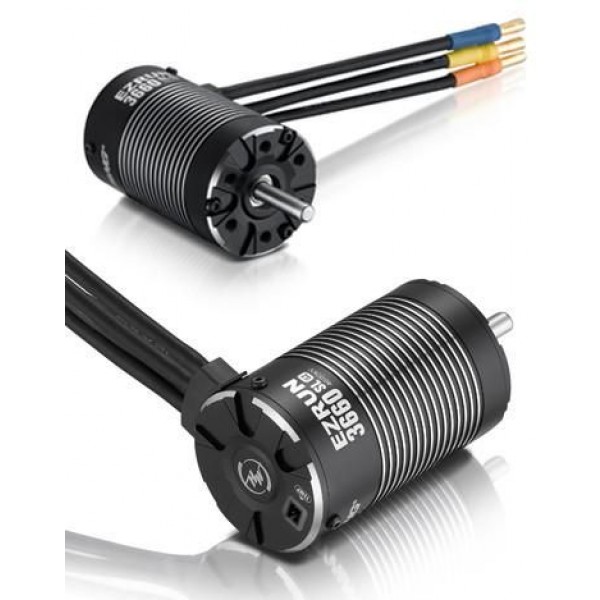

- Overview
features
- Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
- Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3660 G2 with a EZRUN MAX10 SCT ESC.
- O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
- Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT guarantees users large torque plus a very smooth and linear power band.
Ezrun Series:Specs
KV: 4000
P/n:
LiPo: 2-3S
R. (Ω): 0.0060
No-load Current: 5.7A
Motor Diameter & Length: Φ=36 / L=60
Shaft Diameter & Length: Φ=5 / L=18.5
Pole: 4
Weight (g): 268- Specs
Product Specifications
Part Number HWI30402651 Ezrun Series KV 4000 P/n LiPo 2-3S R. (Ω) 0.0060 No-load Current 5.7A Motor Diameter & Length Φ=36 / L=60 Shaft Diameter & Length Φ=5 / L=18.5 Pole 4 Weight (g) 268 - Reviews
