- Overview

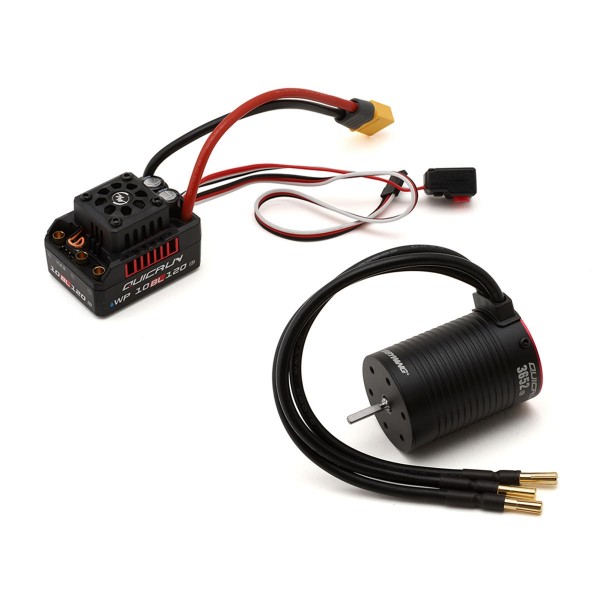

Designed to provide exceptional power and dependability, the Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo showcases a highly efficient dust-proof motor and an ESC with a top-notch IP-67 waterproof rating. The 10BL is equipped with an integrated capacitor that enhances brownout protection, efficiency, and thermal protection. With its versatility, this combo is an excellent choice for various RC models.
Features:
- G2 QuicRun 10BL120
- Intelligent freewheeling technology
- Extreme performance
- Powerful built-in BEC
- Efficient cooling system
- Capacitor Thermal Protection
- Built-in capacitor
- IP-67 waterproof Rating
- G2 QuicRun 3660SL
- High efficiency for more power with lower temperatures!
- 4-pole rotor design for more torque with strong explosive force.
- Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
- 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.
ESC Specs:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: IP-67
- Current:
- Continuous: 120A
- Peak: 760A
- Input Voltage: 2-4S LiPo
- BEC Output: 6V/7.4V @ 5A
- Output Connectors: 4.0mm Bullets
- Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)
- Weight: 4.19oz (119g)
Motor Specs:
- Input Voltage: 2S LiPo
- KV: 5400kV
- Pole: 4
- Motor Diameter: 1.42" (36mm)
- Motor Length: 2.05" (52mm)
- Shaft Diameter: 0.13." (3.175mm)
- Shaft Length: 0.59" (15mm)
- Front Bearing size: D13*D5*T5
- Rear Bearing size: D13*D5*T4
- Weight: 224g
Included:
- (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC
- (1) QuicRun 3652SL G2 Sensorless Brushless Motor (5400kV)
- Specs
Product Specifications
Part Number HWI38030209 - Reviews
