- Overview

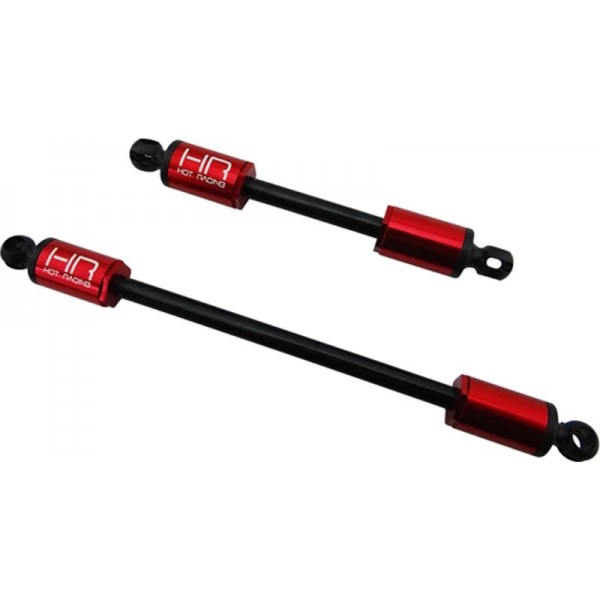

Hot Racing heavy duty steel front and rear telescoping driveshafts for the Axial SCX10 II Kit vehicles (not RTR)
FEATURES:
- Heavy duty CNC machined hardened carbon steel construction
- 6061 aluminum screw-on sleeves to capture steel telescoping pins
- Replaces factory plastic front and rear drive shafts
INCLUDES:
- (1) front steel drive shaft
- (1) rear steel drive shaft
REQUIREMENTS:
- SCX10 II Kit vehicle (not RTR) with 2-speed capable transmission
- Axial AXA0286 M4x2.5x13mm screw shafts are required
- Axial AX31148 W88 V2 Joint 10X15mm
- Axial AX31028 2x11mm pin
- Axial AX31114 (1) Part of W88 V2 driveshaft
- Recommended to maintain telescoping assembly with grease
SPECS:
- Short shaft compressed length: 65.5mm joint-joint
- Short shaft extended length: 84.5mm joint-joint
- Short shaft travel: ~19mm
- Long shaft compressed length: 111mm joint-joint
- Long shaft extended length: 130mm joint-joint
- Long shaft travel: ~19mm
- Outside diameter: 11.5mm
- Shaft diameter: 5mm
Notes:
Will NOT work with vehicles equipped with the RTR transmission- Specs
Product Specifications
Part Number HRASCXT3702 - Reviews
