Overview

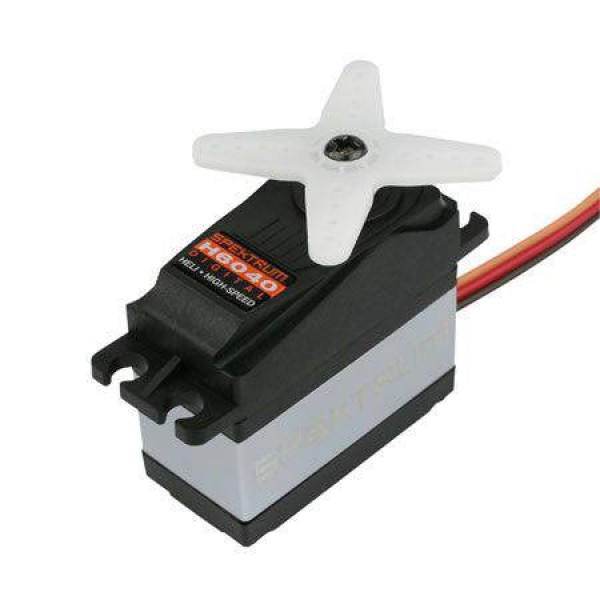

The titanium-geared H6040 servo's lightning-quick .08-second transit time and impressive 167 oz-in of torque are ideal for use in competition-class .50- to .90-size helis that get pushed to the limits of 3D performance. Its holding power and precision are further enhanced by the rigidity of its aluminum case, which also functions as a heatsink to dissipate heat.
features
- Ultra fast 0.08-second transit time with 167 oz-in of torque
- Precise digital control
- Coreless motor for extended motor life and smooth operation
- Titanium gears for maximum durability
- Dual ball bearings provide less resistance for higher performance and longer life
- Specs
Product Specifications
Part Number SPMSH6040 Bearing Dual Bushing Or Bearing Bearing Gear Material Titanium Gear Type Metal,Titanium Motor Type Coreless Servo Operating Voltage 4.8 - 6.0V Servo Size Category Standard Servo Type Digital Speed 0.10 sec/60 deg @ 4.8V; 0.08 sec/60 deg @ 6.0V Torque 133 oz-in (9.6 kg-cm) @ 4.8V; 167 oz-in (12 kg-cm) @ 6.0V - Reviews
