Overview

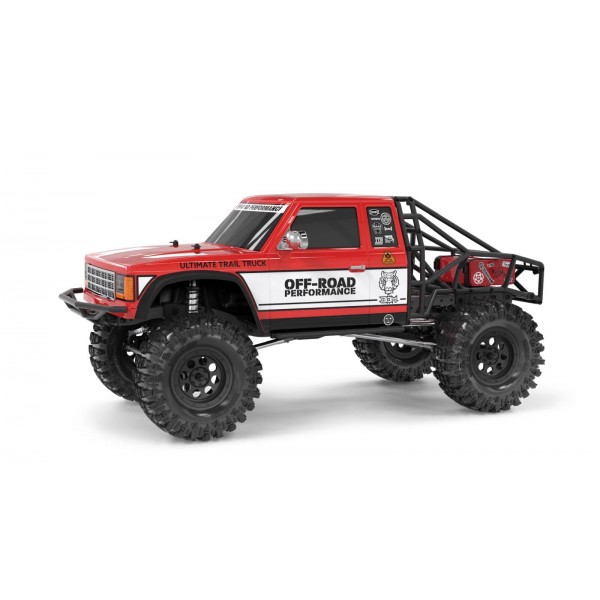

The kit is built on a scale-looking ladder frame construction with stand-up front shock and lay-down rear dampers that make way for the scale roll cage construction. The steering servo is located in the front part of the chassis and the steering assembly is of a zero-Ackermann design for maximized steering performance. Angled front king pins minimize the scrub radius for further increased steering efficiency. The heavy-duty threaded aluminum shock absorbers utilize 3.5mm shock shafts and the transmission, with all-metal internal gears, is of a torque twist reducing design. Optionally a 2-speed hi/lo transmission conversion will become available to add speed when needed. The kit is rounded out by grippy tires, a cool looking body shell a couple of scale accessories.
Requires:
- 2-Channel Radio System
- 540 Electric Motor & ESC
- High Torque Steering Servo
- 7.2 NiMH - 7.4V LiPo Battery & Compatible Charger
- Paint for body
- Tools for assembly
Notes:
NOTE: Body is in clear Lexan and is shown painted for advertising purposes only. Included body is clear and requires painting.
features
- Comes with rugged GA44 axles
- Forward weight balance for greater trail capability
- Frame mounted steering servo for increased scale realism
- Beefy TTR transmission
- Dual slipper clutch
- All metal transmission gears
- Counter-rotating driveshafts for reduced torque twist
- Cantilever or standard rear shock mount options included
- Body hinges on rear cage hinge for easy access to the chassis
Width: 240mmSpecs
Height: 226mm
Length: 515mm
Wheel Base: Adjustable (287, 313, 324, 336mm)
Ground Clearance: 79mm
Weight: 4.2lbs (no electronics)Product Videos
- Specs
Product Specifications
Part Number GMA57000 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Width 240mm Height 226mm Length 515mm Wheel Base Adjustable (287, 313, 324, 336mm) Ground Clearance 79mm Weight 4.2lbs (no electronics) - Reviews
