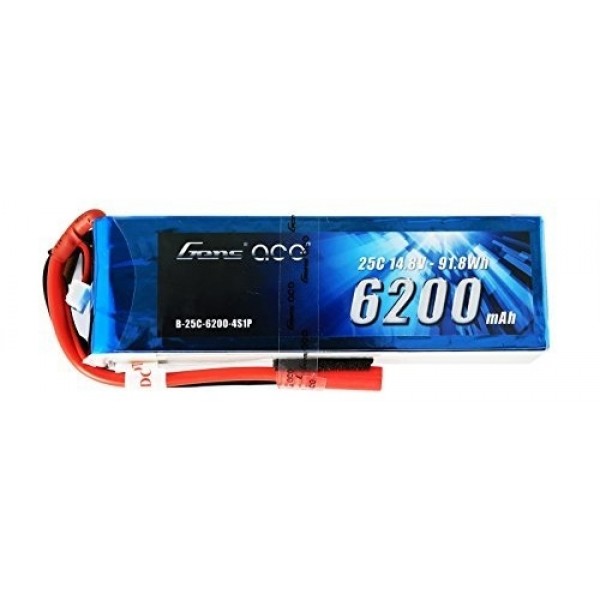

Gens Ace LiPo Pack Battery 6200mAh 25C 14.8V (4S) with Deans Connector

Overview

features

Superior Japan and Korea Lithium Polymer raw materials
Automatic stacking technology, better performance
Strict matching progress, excellent consistency
Up to 200Wh/kg energy density
Long cycle life (150 times minimum)
Local after-sales service(located in Dublin, CA)

Specs

Voltage(V): 14.8V
Discharge Rate (C): 25C
Max Burst discharge Rate (C): 50C
Configuration: 4S1P
Net Weight(dev.20g): 585g
Length(dev.5mm): 146mm
Width(dev.2mm): 46mm
Height(dev.2mm): 41mm
Connector Type: Deans Plug
Wire Gauge: AWG12#
Wire Length(mm): 120mm
Balancer Connector Type: JST-XHR

Specs

Product Specifications

Part Number	GA-B-25C-6200-4S1P-D
Battery Chemistry	LiPo
Battery Voltage	14.8V (4-cell)
Capacity mAh	6200mAh
Discharge Rate	25C
Connector Type	Deans (t-type)
Voltage(V)	14.8V
Discharge Rate (C)	25C
Max Burst discharge Rate (C)	50C
Configuration	4S1P
Net Weight(dev.20g)	585g
Length(dev.5mm)	146mm
Width(dev.2mm)	46mm
Height(dev.2mm)	41mm
Connector Type	Deans Plug
Wire Gauge	AWG12#
Wire Length(mm)	120mm
Balancer Connector Type	JST-XHR
