- Overview
Overview

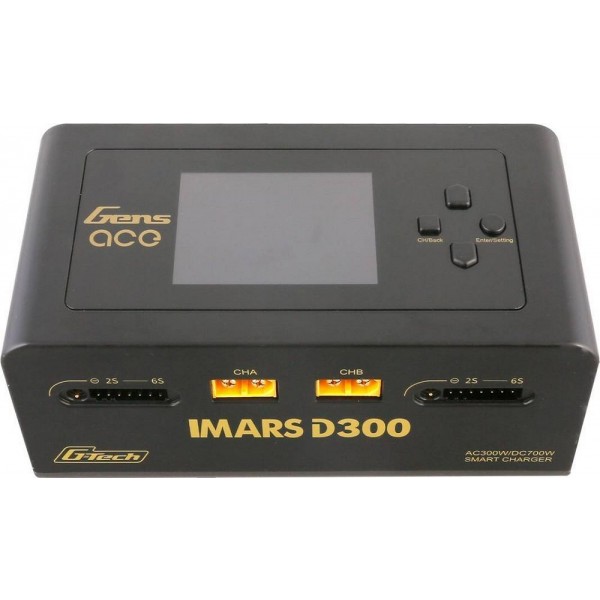

As a member of G-Tech Eco, Imars D300 Charger is designed specifically for the G-Tech smart battery, but is also compatible with non-smart batteries.
When a G-Tech smart battery is connected to the Imars D300 charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. For non-smart batteries, it is necessary to manually select the battery type and the required working mode to get started.
The Imars D300 Charger offers a range of features, including dual channel AC/DC smart balance charging, a small and lightweight portable design, a wide-view IPS display, and high power charging.
The charger has seven operating modes: charge, discharge, balance, storage, ExtDischarge, SyncCharging, and digital power supply. It offers simple to use and operation.
features
- Dual Channel AC/DC Smart Balance Charger
- Small and Lightweight Portable Design with wide-view IPS Display
- High power charging, capable of Max 16 amp charge rates for one channel, worldwide 100V-240V voltage versatility, AC 300 Watts, DC 700 Watts
- External discharge feature available
- Synchronous output, 2-in-1 Fast-charging
- Built-in DC power source for different devices
- Controlled heat dissipation system
- Advanced safety features, UL94-V0 Flame Retardant Grade
- Protection of Short circuit / Over current / Overcharge / Over voltage
- Support Gens Ace G-tech smart charging
Normal/Standard Charge Current: 0.1-16ASpecs
Maximum Continuous Discharge Current: 0.1~3A
Product Width: 2.99" (76 mm)
Product Weight: 18.69 oz (530g)
Battery Type: LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), NiMH (1.2V per cell)
Connector Type: XT-60
Discharge: Yes
Product Length: 5.7" (145 mm)
Display: 2.4 inch IPS LCD Display
Input Voltage: AC 100-240V; DC 7-30V
Product Height: 2.44" (62 mm)- Specs
Product Specifications
Part Number GEA300WD300-UB Supported Chemistries LiPo, LiFE, LiHV, NiMH Input Source AC, DC Normal/Standard Charge Current 0.1-16A Maximum Continuous Discharge Current 0.1~3A Product Width 2.99" (76 mm) Product Weight 18.69 oz (530g) Battery Type LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), NiMH (1.2V per cell) Connector Type XT-60 Discharge Yes Product Length 5.7" (145 mm) Display 2.4 inch IPS LCD Display Input Voltage AC 100-240V; DC 7-30V Product Height 2.44" (62 mm) - Reviews
