- Overview
Overview

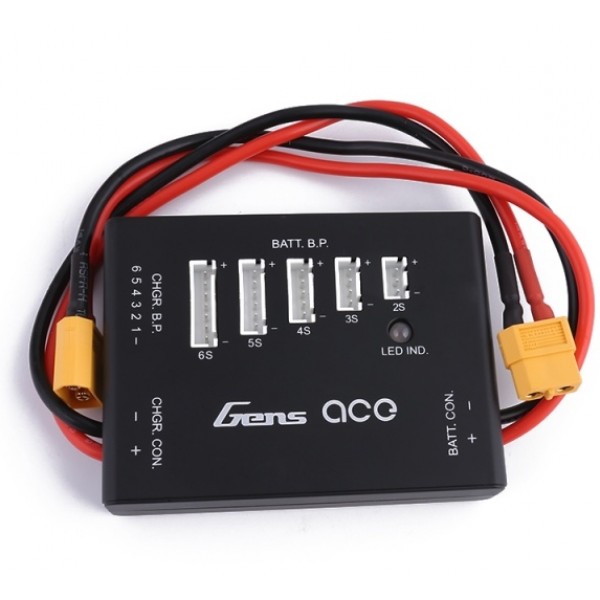

Gens Ace Charging Safeguard 6S Charger Protector features auto shut-off safety charger adapter connector is designed for 2S-6S (nominal voltage 3.7V/cell) Lithium Polymer battery pack. It has several functions that allow for safe charging of a LiPo battery pack.
Notes:
Don't reverse connector polarity.
Don't short any connectors together.
Don't leave this product unattended while charging. Stop using the Safeguard if you find anything abnormal.
Don't charge any battery that is not in the correct voltage range.
USE with Lithium polymer batteries ONLY. DO NOT use any other battery chemistry with Charging Safeguard.
Keep Charging Safeguard away from dust, humidity, rain and heat sources. Avoid direct sunlight and strong vibrations.Net Weight: 88g;Specs
Dimensions: 88mm Length x 65mm Width x 20mm Height
Input Volatge: DC5V-30V
Input Current: Max 30A
Output Volatge: DC5V-25.8V
Output Current: Max 30AProduct Videos
1.Over-voltage Protection:Features Overview
When charging, if the Charging Safeguard detects that the voltage of a single cell is 4.3V or over and the voltage lasts more than 2 seconds, it will automatically stop charging and the Yellow LED will activate. Please disconnect and reconnect to resume use of the Charging Safeguard.
2.Over-current Protection:
When charging, if the Charging Safeguard detects that the charging current is over 30A and the current lasts more than 1 second, it will automatically stop charging and Yellow LED will activate. Please disconnect and reconnect to resume use of the Charging Safeguard.
3.High Temperature Protection:
When charging, if the internal temperature of the Charging Safeguard is over 70℃, it will automatically stop charging and the yellow LED will activate. To resume charging, please cool down the Charging Safeguard and battery if required. Please disconnect and reconnect the battery to resume charging.
4.Battery Checking:
When charging, if the voltage of any single cell is lower than 2.5V. The Red LED will start blinking and the charging will be stopped. The voltage of the battery is dangerously low. DO NOT use this battery pack under any circumstances. Safely and properly dispose of this damaged battery pack immediately.
5.Abnormal Detection:
If the Safeguard detects anything abnormal, the Red LED will activate which means the Safeguard is malfunctioning. Please contact info@gensace.com for assistance.
6.Auto Sleep Mode:
When connecting the Charging Safeguard to the battery, the indicator LED will deactivate and the Safeguard will automatically start Sleep Mode if charging does not begin within 30 minutes. Please disconnect and reconnect the battery to exit Sleep Mode.
7.LED Indicator:
If the Green LED is active, the Charging Safeguard works properly.
If the Yellow LED is active, the protection feature is activated.
If the Red LED is active, the Charging Safeguard is malfunctioning
If the Red Led is blinking, the battery pack is defective and unable to be charged.
- Specs
Product Specifications
Part Number GA-SAFEGUARD-6S Net Weight 88g; Dimensions 88mm Length x 65mm Width x 20mm Height Input Volatge DC5V-30V Input Current Max 30A Output Volatge DC5V-25.8V Output Current Max 30A - Reviews
