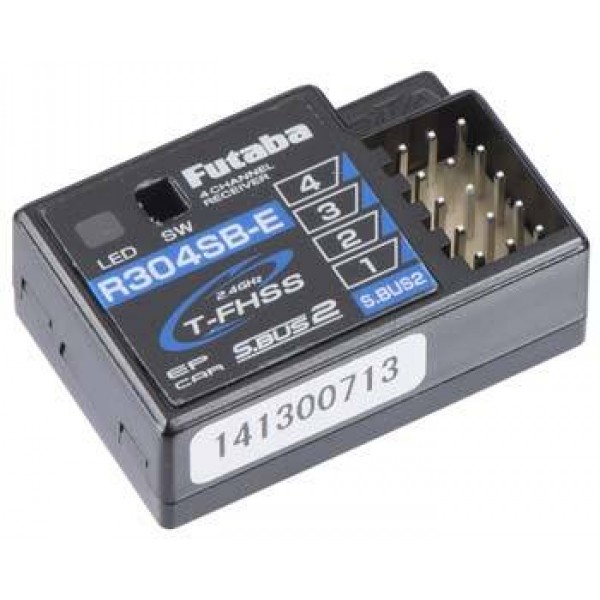

Futaba R304SB-E 4Ch 2.4GHz TFHSS Telemetry Receiver


LOADING IMAGES
Futaba (FUT) Logo Futaba R304SB-E 4Ch 2.4GHz TFHSS Telemetry Receiver
$59.99
This is a Futaba part #FUTL7681, 2.4GHz T-FHSS S.BUS2 4-channel Telemetry Receiver.

Availability: In stock*

Only 1 left

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The Futaba R304SB-E T-FHSS 4-Channel Telemetry 2.4GHz Receiver is only compatible with Futaba T-FHSS telemetry compatible transmitters. The R304SB-E is very similar to the R304SB (FUTL7680) in that they both feature 4-channels, both feature S.Bus2, both are Telemetry enabled and both cost roughly the same price.

However, the two receivers differ in two fundamental areas: this R304SB-E is only intended for electric vehicles and features the benefit of having a non-exposed built-in antenna. The R304SB is compatible with electric/nitro/gas applications and the antenna is fully exposed.

Notes:

The R304SB-E receiver is recommended for electric powered models only. This is NOT recommended for use with nitro or gas powered models.
Not compatible with the Futaba FHSS, S-FHSS, FASSTest or FASST transmitters.

features

  • T-FHSS System
  • Telemetry Enabled
  • 4-Channels
  • Built-in Hidden Antenna
  • Electric Vehicle Use Only

Specs

Futaba System: T-FHSS
S.Bus2: Yes
Channels: 4
Range: 70m (230ft) (at best conditions)
Power Requirement Rated Voltage: 4.8-7.4V
Usable Voltage: 3.5-8.4V
Size: 1.38x0.91x0.33" (35.1x23.2x12.5mm)
Weight: 0.23oz (6.7g)
Number of Ports: 5
PWM Output: 4
SBUS Ports: 0
SBUS2 Ports: 1
FASST: No
Telemetry: Yes (T-FHSS)
S-FHSS: No
High Speed: Yes
High Voltage: Yes
Connector: J (STND)
Range: Only for Electric Powered Car Models
Specs

Product Specifications

Part NumberFUTL7681
Futaba SystemT-FHSS
S.Bus2Yes
Channels4
RangeOnly for Electric Powered Car Models
Power Requirement Rated Voltage4.8-7.4V
Usable Voltage3.5-8.4V
Size1.38x0.91x0.33" (35.1x23.2x12.5mm)
Weight0.23oz (6.7g)
Number of Ports5
PWM Output4
SBUS Ports0
SBUS2 Ports1
FASSTNo
TelemetryYes (T-FHSS)
S-FHSSNo
High SpeedYes
High VoltageYes
ConnectorJ (STND)
