- Overview
Overview
The 7PX leads the way to a new revolution in surface control, thanks to Super Response Mode, full telemetry capability and the R334SBS diversity receiver!
T-FHSS SR Super Response makes the 7PX the fastest Futaba radio yet, to give drivers a more "locked-in" feel while racing. In addition, the 7PX offers the T-FHSS protocol, which allows full telemetry capability. This radio is also compatible with S-FHSS and FASST protocols, expanding receiver options tenfold.
The innovations don't stop there. A 4.3" backlit LCD touch screen lets drivers access key features instantly, via intuitively designed menus. When it comes to features, an R334SBS diversity receiver, 40-model memory and updateable software are just the tip of the iceberg.
Up to 7 channels can be controlled and programmed. Up to 5 telemetry sensors can be viewed on the main screen for real-time information. Traction control and over-rev functions have been added to complement the ABS function. The 7PX supports high-speed servos—drivers can change the conventional 1,520 µ to 760 µ for SR Mode. The 7PX also adapts the "Return" function to "Throttle," so drivers can set it with more accuracy.Includes:

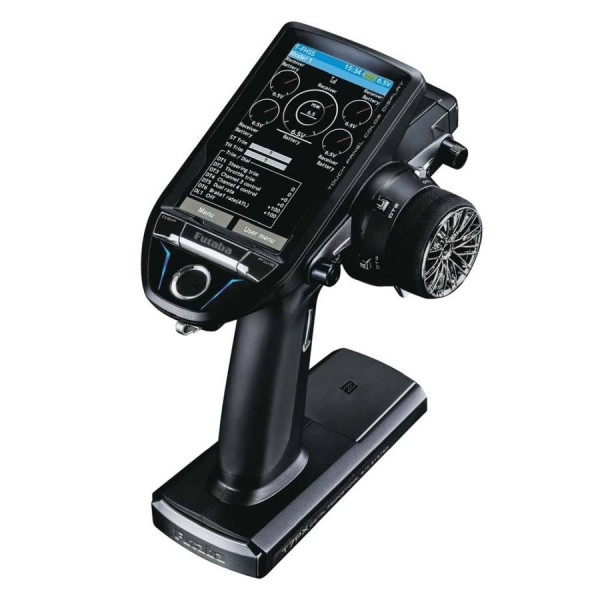

- Futaba 7PX Transmitter
- R334SBS 4-Channel Diversity Receiver, FUTL7688
- Angle Spacer for Wheel
- 32° Wheel Adapter
- Narrow Type Trigger Brake Lever
- Miniature Screwdriver
- Screen Protector
- Instruction Manual
Requires:
- Transmitter battery such as the Futaba NT5F1800B NiMH 6V NiMH TX
- Battery
- **dry cell battery box is only for radio performance
- checks, do not use AA cells to operate vehicles**
- Servos of modeler's choice
features
- Futaba SR (Super Response) technology
- T-FHSS SR (Super Response), T-FHSS, S-FHSS and FASST protocols
- Large, backlit 4.3" LCD touch screen
- Full telemetry compatible
- 40-model memory
- Display button
- 15-character model names
- Throttle selection (50/50; 70/30; 100)
- 5 programmable mixes
- S.Bus servo programming editor
- R334SBS 2.4GHz diversity receiver
- 6 assignable push buttons
- Channels 5/6 and 7 feature reversing, end point adjustments, sub-trim, assignable brake mixing and ABS
- One dial
- Conditions
- 4WS mixing
- Tank mixing
- Brake mixing
- Gyro mixing
- Steering mixing
- Tilt mixing
- CPS mixing
- Roll out chart
- Gear ratio chart
- Battery use: LiFe, NiMH
- Driver preference menu
- Exponential
- 6 assignable digital trims
- Assignable switch/dial functions
- Servo reversing
- Servo monitor
- Up/down/integral timer (records up to 80 laps)
- Lap timer/memory
- Wheel/trigger (tension, position, angle) adjustments
- Model copy
- Software-updateable with a micro memory card (sold separately) or via Near Field Communication (NFC). Just open an app on your Android™ device and place it next to the radio to update!
- Micro memory card slot
- Voice message/audio earphone jack
- Built-in speaker
- Right/left hand operation
- 2-position switch
- 4 trigger sizes
- 7 mm throttle trigger adjustment
- 24 steering wheel angle positions
- Low battery alarm
- Auto power-off
- Return button
Transmitter SpecificationsSpecs
Type: 7-Channel FASST/S-FHSS/T-FHSS/T-FHSS SR
Includes: R334SBS diversity receiver
Voltage: 6-7.4V
Weight: 20.5 oz (580 g)
Includes: R334SBS diversity receiver, APA adapter, large wheel with rubber grip, LCD protection sheet, mini driver and manual
Requires: LiFeSource 6.6V 1900mAh LiFe Tx Battery (HCAM6521)
R334SBS Receiver Specifications
T-FHSS SR/T-FHSS 2.4GHz System
Dual antenna diversity
S.Bus2 4-channel receiver
High Voltage: 3.7-7.4V
Battery fail-safe
Normal/High-speed mode auto-detection
Dimensions: 1.33 x 0.88 x 0.44 in (33.9 x 22.3 x 11.3 mm)
Weight: 0.26 oz (7.3 g)Product Videos
- Specs
Product Specifications
Part Number FUTK4908 Type 7-Channel FASST/S-FHSS/T-FHSS/T-FHSS SR Includes R334SBS diversity receiver, APA adapter, large wheel with rubber grip, LCD protection sheet, mini driver and manual Voltage 6-7.4V Weight 0.26 oz (7.3 g) Requires LiFeSource 6.6V 1900mAh LiFe Tx Battery (HCAM6521) High Voltage 3.7-7.4V Dimensions 1.33 x 0.88 x 0.44 in (33.9 x 22.3 x 11.3 mm) - Reviews
