Overview

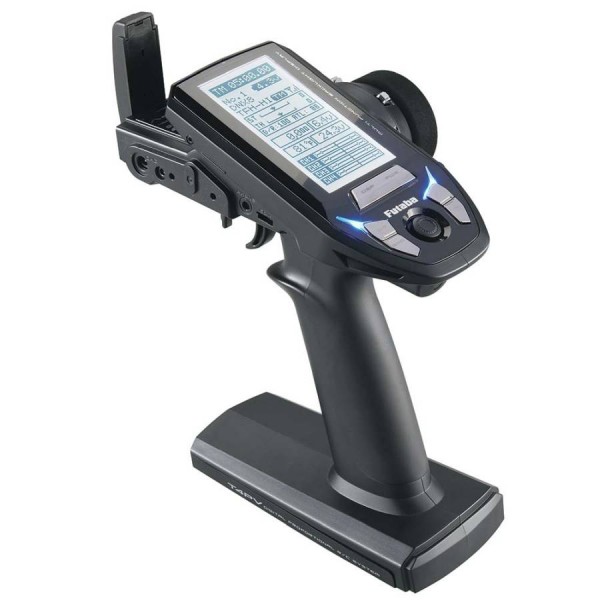

Be more, do more with the Futaba 4PV!Some RCers are born to bash, others are driven to race. One radio is designed to bring out your best. Featuring the T-FHSS protocol, the 4PV provides live telemetry data of your vehicle's temperature, rpm, receiver and external voltage levels. Audible alerts — via the audio jack — allow you to focus on driving while staying in the know. With adjustable throttle position, throttle tension, steering tension and five optional accessories, the 4PV offers customizable ergonomics to make the radio uniquely yours. The 4PV is compatible with T-FHSS and S-FHSS receivers. It’s also updateable via the CIU-2 and CIU-3 interfaces, ensuring your 4PV keeps up to date with the latest Futaba technological innovations. To get the most out of your 4PV, use the included R304SB T-FHSS receiver.
Includes:
- Transmitter
- Receiver
- Mini Screwdriver
- Instruction Manual
Requires:
- AA Batteries: Four for transmitter
features
- Compatible with two T-FHSS receivers and six S-FHSS receivers
- S.Bus/S.Bus2 servo programming
- Forty model memory, model copy/model clear
- Ten character model naming
- Updateable via the CIU-2 and CIU-3 interface
- Telemetry functions include Temperature, RPM, Brushless Motor RPM, and Voltage Sensor with logging capabilities and audio alerts (sensors not included and must be purchased separately) (telemetry system cannot be used with S-FHSS receivers)
- Telemetry data speech via earphone
- Programmable digital dial, push switch and push lock switch
- Anti skid braking system
- Display switch allows adjustments in the settings without turning on the RF signal
- Backlit 39x74mm dot matrix LCD screen
- Adjustable steering tension, and steering position (angle/APA)
- Adjustable throttle position
- Compatible with 2S LiFe batteries, NiMHs, dry cells and other battery options
- Programmable mixing functions;
- 4WS
- Throttle
- Brake
- Gyro
- Steering
- Channels 3 and 4 Progrmmable Functions;
- CH3 Servo Reverse, Step, EPA, Sub Trim, Brake, ABS,
- CH4 Servo Reverse, EPA, Sub Trim, Brake, ABS,
- Servo Adjustments;
- Digital Steering Trim
- Digital Steering and Throttle Trim Rate
- Steering and Throttle Reverse
- Steering Dual Rates
- Steering and Throttle EPA
- Steering and Throttle Expo
- Steering and Throttle Sub Trim
- Throttle/Mechanical ATL
- ABS
- Idle Up
- Throttle Acceleration
- Throttle Preset (hold)
- Throttle Servo Speed
- Timer Functions;
- Up/Down Timer
- Lap Timer
- Lap Memory (up to 100 laps & total)
- One year limited warranty through Hobby Services beginning at date of purchase
4PV TransmitterSpecs
Transmitting Frequency Band: 2.4GHz band
RF Power Output: 100mw EIR
Power Requirement: Four AA batteries (6V)
Current Drain: 150mA or less
Transmission Antenna: 1/2 dipole
Receiver ( FUTL7680 );
Power Requirement: 4.8 - 7.4V battery (dry cells cannot be used)
Receiving Frequency: 2.4GHz
System: T-FHSS (auto detection) with SBUS2 port
Dimensions: 1.38 x 0.91 x 0.33" (35.1 x 23.2 x 8.5mm)
Weight: 0.23oz (6.5g)Product Videos
- Specs
Product Specifications
Part Number FUTK4700 Transmitting Frequency Band 2.4GHz band RF Power Output 100mw EIR Power Requirement 4.8 - 7.4V battery (dry cells cannot be used) Current Drain 150mA or less Transmission Antenna 1/2 dipole Receiving Frequency 2.4GHz System T-FHSS (auto detection) with SBUS2 port Dimensions 1.38 x 0.91 x 0.33" (35.1 x 23.2 x 8.5mm) Weight 0.23oz (6.5g) - Reviews
