Overview

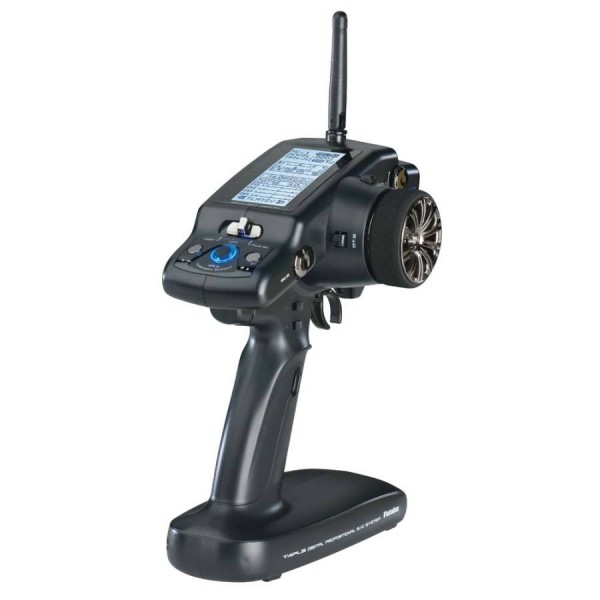

The first Futaba surface system with telemetry!Built on the success of the first radio ever to win the coveted "Basher-approved" award from BigSquidRC.com, the 4PLS adds the ability to read and display four critical racing data as you drive. You can also record them for later reference.
Telemetry is the biggest racing advantage the 4PLS offers. Others include user updatable software, 40-model memory, and more — all at the same affordable price as the original 4PL!features
- 4-channel
- T-FHSS (telemetry), FHSS and S-FHSS capable
- Telemetry
- Digital trims
- 40 model memory
- 10 character model naming
- 10 character user name
- Large 128 x 64 dot backlit LCD display with contrast adjustment
- Alarm (adjustable)
- User updatable software (using CIU-2)
- Steering wheel/trigger adjustment
- Model data transfer
- Model copy
- Model clear
- MC LINK
- Fail-safe on all channels
- System Overview:
- Telemetry for Temperature, RPM, Rx Voltage, external voltage
- Telemetry data logging with adjustable download intervals
- Count up/down timers
- Lap timer
- 100 Lap memory
- Wheel/trigger tension adjustment
- Trigger position adjustment
- Display only mode of operation
- Steering/Throttle calibration menu
- Low battery alarm
- Dry cell, LiFe and NiMH battery compatible
- Built-in charge jack
- Inactivity alarm
- Adjustable trim steps
- Anti-skid braking system (ABS)
- Throttle acceleration
- Throttle speed
- Steering speed
- Idle up
- Throttle preset (hold)
- Trim switch/dial/switch assignability
- Mechanical ATL Adjustment
- Dual rates
- Exponential rates
- Servo reversing
- ATL
- Subtrim
- End point adjustment
- Mixing Functions:
- Brake bias mixing
- 4WS mixing
- Dual ESC mixing
- Gyro mix
- Programmable mixing
T-FHSS/S-FHSS/FHSS Transmitter;Specs
Transmitting Frequency: 2.4GHz
Power Requirement: Four AA
Current Drain: 150mA or less
Transmission Antenna: 1/2 di-pole
R304SB Receiver;
Power Requirement: 4.8 - 7.4V battery
Receiving Frequency: 2.4GHz
System: T-FHSS (auto detection)
Dimensions: 1.38 x 0.91 x 0.33" (35.1 x 23.2 x 8.5mm)
Weight: 0.23oz (6.6g)Product Videos
- Specs
Product Specifications
Part Number FUTK1410 Transmitting Frequency 2.4GHz Power Requirement 4.8 - 7.4V battery Current Drain 150mA or less Transmission Antenna 1/2 di-pole Receiving Frequency 2.4GHz System T-FHSS (auto detection) Dimensions 1.38 x 0.91 x 0.33" (35.1 x 23.2 x 8.5mm) Weight 0.23oz (6.6g) - Reviews
