Overview
The most affordable 2.4GHz surface system Futaba offers!The 3PRKA is an outstanding value in basic 2.4GHz control, whether you're looking at it as an inexpensive start-up system or an economical upgrade for your RTR. It puts the interference-free dependability of Futaba FHSS (Frequency Hopping Spread Spectrum) technology at your fingertips with the speed and ease of one-button Easy Link⢠binding.
Fail-Safe (Throttle).
70:30 throttle mode.
Channel 3 switch.
Low-battery warning.
FUTR203GF 3-channel high-voltage FHSS receiver.
Trims & servo reversing (Steering, Throttle).
Dual Rates (Steering).
EPA (Throttle).
Built-in antenna.
Protective cover.
A compact layout and simple controls make it easy to tailor 3PRKA handling to your driving style. Closing the cover protects the controls from harm and your setup from unwanted changes!
Thumb-activated controls include an on/off switch for Channel 3 functions and a dial for adjusting steering response to the exact needs of the moment.Includes:

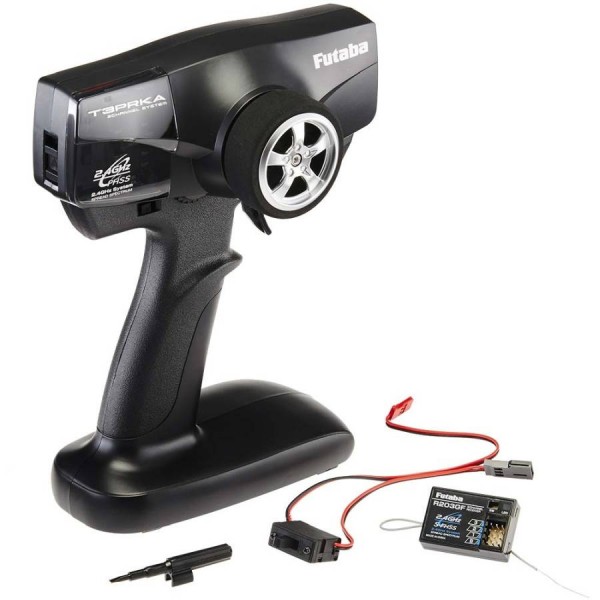

- Futaba 3PRKA 2.4GHz FHSS Transmitter
- FUTR203GF Receiver
- Instruction Manual
- On/Off Switch
Requires:
- Servos of modeler's choice
- Four AA batteries for transmitter
Notes:
2.4GHz FHSS is not compatible with FASST systems.
Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any type of servos or peripherals.
High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCsfeatures
- Ideal upgrade for radios found in RTR vehicles
- Throttle and steering trim and reverse
- Steering dual rate dial
- Throttle end point adjustment
- Channel three switch
- Throttle fail safe
- One year limited warranty through Hobby Services beginning at date of purchase
Transmitter:Specs
Transmitting Frequency: 2.4GHz band
Power Requirement: Four AA cells
Current Drain: 100mA or less
Receiver;
Dimensions: 1.54 x 1.02 x 0.39" (39 x 26 x 10mm)
Weight: 0.28oz (8g)
Operating Voltage: 4.8 - 7.4V (shared with servo)
Battery Fail Safe Voltage: 3.8V*
Current Drain: 30mA at no signal
*Battery fail safe voltage is set for 4-cell NiCd/NiMH battery
Battery F/S does not work properly when other type of battery is used- Specs
Product Specifications
Part Number FUTK3100 Transmitter Transmitting Frequency 2.4GHz band Power Requirement Four AA cells Current Drain 30mA at no signal Dimensions 1.54 x 1.02 x 0.39" (39 x 26 x 10mm) Weight 0.28oz (8g) Operating Voltage 4.8 - 7.4V (shared with servo) Battery Fail Safe Voltage 3.8V* - Reviews
