- Overview
Overview

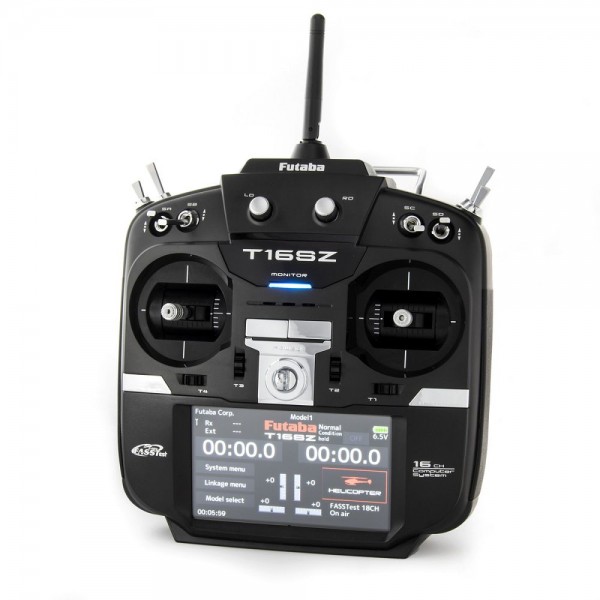

This is a Futaba 16SZA 2.4GHz FASST Airplane Spec Transmitter with an R7008SB Receiver.
Includes:
- (1) Futaba 16SZA Transmitter with 6.0V NiMH rechargeable battery
- (1) R7008SB Receiver, FUTL7675
- (1) HT5F1800B MiMH battery and charger
- (1) Switch Harness
- (1) Mini Driver
- (1) Instruction manual
features
- FASSTest Air-2.4GHz multi-function 18 channel transmitter
- 4.3 Color touch screen LCD
- Telemetry System
- S.BUS/S.BUS2 servo setting function
- Power saving transmitter type
- SD card supported (card not included)
- Unique model memory system
- Lever head length adjustment
- Switch/ VR position change and AUX channel function change
- Trainer & model data transfer function
- Gyro menu
- Transmitter:
- Transmitting Frequency: 2.4GHz band
- System: FASSTest18CH, FASSTest12CH, FASST MULT, FASST 7CH, T-FHSS, S-FHSS, switchable
- Power Supply: 6.0V HT5F1800B NiMH battery
- RF Power Output: 100mW EIRP
- Receiver:
- Receiving Frequency: 2.4GHz FASSTest system
- Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
- Current Drain: 75mA
- External Voltage Port: 0 - 70V DC
- Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
- Weight: 0.38oz (10.9g)
- Antenna Length: 5-3/4" (146mm)
- Specs
Product Specifications
Part Number FUT01004355-3 - Reviews
