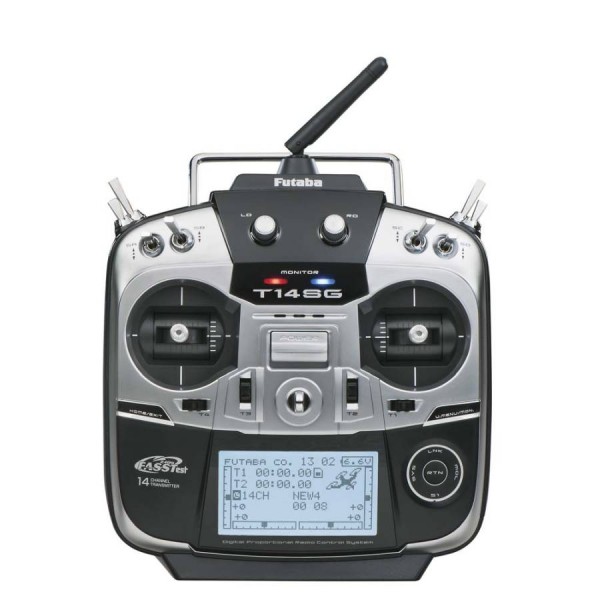

All the functions flyers demand in one comfortable radio!Futaba proudly introduces the 14SG, the only 14-channel system with revolutionary 2.4GHz FASSTes!t technology. It's also compatible with Futaba FASST and S-FHSS protocols, so you can use virtually all Futaba 2.4GHz air receivers. The 14SG can also transmit and receive telemetry data. Install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. Heli pilots will prefer the 14SG's flybarless gyro support - which makes the 14SG the perfect system for flybarless flight. That's just the beginning! To see everything that the 14SG can do, read on...
Includes:
- Futaba 14SGH 14 Channel 2.4GHz Computer Radio System on Mode 2
- R7008SB Receiver FUTL7675
- 6V 1800mAh NiMH Transmitter Battery
- Instruction Manual
- LiFe Spacer for optional FT2F2100B/FT2F1700B battery* pack
- Battery Charger
- Neck Strap
- Switch Harness
Requires:
- Servos of modeler's choice
features
- 2.4GHz FASSTest technology is also compatible with Futaba FASST and S-FHSS protocols, allowing this system to be used with most 2.4GHz air receiver Futaba produces
- Transmits and receives telemetry data with Futaba telemetry sensors (not included, sold separately) to monitor flight data, receive alerts and more. See COMMENTS below
- 30 model memory with 10 character model naming and 10 character user naming
- Left and right assignable slider switches
- Two assignable rotary knobs
- Six assignable three-position switches
- One assignable momentary two-position switch
- One assignable two-position switch
- S.BUS2 programmability allows multiple servos, gyros and telemetry to be installed with minimum amount of cables
- Programming port and earphone jack
- Model data can be saved to an SD card (not included, purchase separately SD: 32MG-2GB, SDHC:4GB-32GB)
- One year limited warranty through Hobby Services beginning at date of purchase
- Airplane Features;
- 7 different wing types, 3 different tail types, 2 different rudder types
- Flap setting menu
- Differential ailerons
- Aileron to camber flap mixing, aileron to rudder mixing
- Rudder to aileron mixing and rudder to elevator mixing
- Camber mixing, elevator to camber mixing, camber flap to elevator mixing
- Snap roll, V-tail and airbrake mixing
- Ailevator
- Winglet
- Motor mixing
- Fuel mixture mixing (single and twin)
- Gyro mixing
- Throttle curve (5-point), Pitch curve (5-point)
- Idle down
- Helicopter Features;
- 6 swash plate types
- Pitch/throttle curves (5-point)
- Throttle hold
- Swash mix
- Throttle mix
- Pitch to rudder mixing
- Fuel mixture
- Gyro (flybarless support)
- Governor (700-3500 rpm)
- Hover pitch and throttle
- High/low pitch
- Swash AFR
- Swash setting (mixing rate, linkage and speed compensation), swash ring (electronic)
- Throttle cut
- Glider Features:
- 11 different wing types, 3 different tail types, 2 different rudder types
- Flap setting menu
- Differential Ailerons
- Aileron to camber flap mixing
- Aileron to brake flap mixing
- Aileron to rudder and rudder to aileron mixing
- Rudder to elevator mixing
- Camber mixing
- Elevator to camber mixing
- Camber flap to elevator mixing
- Butterfly mixing, butterfly to elevator mixing
Transmitter;Specs
Transmitting Frequency: 2.4GHz band
System: FASSTest14CH, FASSTest12CH, FASST MULTI, FASST 7CH, S-FHSS switchable
Power Supply: 6.0V HT5F1800B NiMH battery (FUTM1482)
R7008SB Receiver (FUTL7675);
Receiving Frequency: 2.4GHz FASSTest system
Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
Current drain: 75mA
Extra Voltage Port: 0 - 70V DC
Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
Weight: 34.5oz (980g)Product Videos
- Specs
Product Specifications
Part Number FUTK9411 Transmitting Frequency 2.4GHz band System FASSTest14CH, FASSTest12CH, FASST MULTI, FASST 7CH, S-FHSS switchable Power Supply 6.0V HT5F1800B NiMH battery (FUTM1482) Receiving Frequency 2.4GHz FASSTest system Power Requirement 3.7 - 7.4V (voltage range 3.5 - 8.4V) Current drain 75mA Extra Voltage Port 0 - 70V DC Size 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm) Weight 34.5oz (980g) - Reviews
