- Overview
Overview

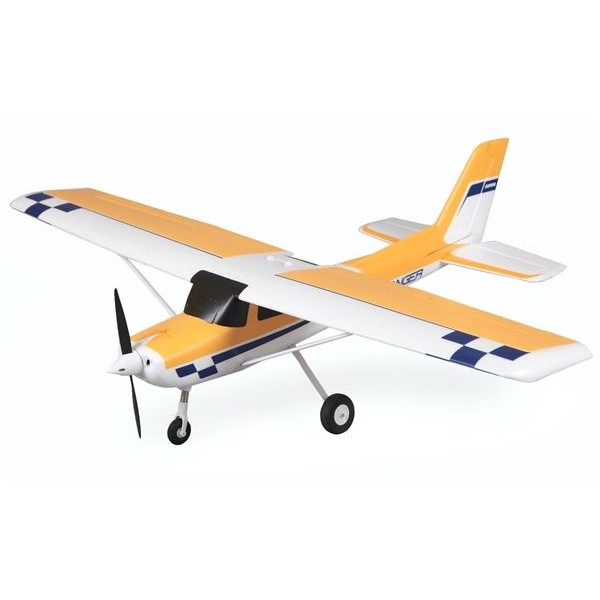

As the newest member of the FMS multi-purpose aircraft lineup, the 1220mm Ranger retains all of the fantastic features that pilots have come to expect from FMS- stable flight characteristics, easy to assemble airframe and realistic, general-aviation inspired design.
Built with ultralight EPO foam, the large, high-winged airframe configuration gives the Ranger low wing-loading and extraordinary amounts of lift, even at slow speeds. Robust plastic struts give extra strength to the wings during aerobatic maneuvers and the patented high-strength tricycle landing gear makes ground handling a breeze.
A great aircraft is nothing without a great, dependable power system- FMS has equipped the ranger with a 3136-1200Kv outrunner motor with 20A Predator ESC, which allows the ranger to climb almost vertically on demand!
In the box, the Ranger comes with two sets of landing gears- a high-strength metal landing gear for ground operations and a pair of floats with an integrated rudder for water operations.
Designed with a yellow and white high-visibility color scheme, the ranger can always be easily orientated even in gloomy, overcast weather.
Like the Super-EZ and the Kingfisher, the Ranger is designed with ease of assembly in mind. Requiring only 6 (wheeled landing gear) or 10 (floats) screws to completely assemble, the longest wait time is the time it takes to charge the battery!Includes:
- (1) Ranger 1220mm Electric Plane with:
- (1) 4 Channel Receiver (installed)
- (5) 9g Servos (installed)
- (1) Predator 20A ESC (installed)
- (1) 3136-1200Kv motor (installed)
- (1) 4 Channel Transmitter
- (1) 3 Cell 11.1V 1300mAh 25C LiPo Battery
- (1) LiPo Battery Charger
- (1) High Strength Metal Landing Gear
- (1) Float Set with Integrated Rudder
- (1) Product Manual
features
- High-spec power system: 3136-1200Kv motor, Predator 20A ESC, 11.1V 1300mAh 25C battery
- Two landing gear types included - tricycle and floats!
- High strength, lightweight metal landing gear for all-terrain operations.
- Screw-together and twist-lock assembly, completed in 3-10 minutes
- 10-15 minute flight times
- One piece horizontal stabilizer for precise flight characteristics
Approximate Assembly Time: Less than 1 HourSpecs
Approximate Flight Time: 10-15 minutes
CG (Center of Gravity): 50-60mm(From Leading Edge)
Charger: Included
Completion Level: Ready-To-Fly
Flaps: No
Power Type: Electric
Landing Gear: Optional landing gear is included
Minimum Required Radio: 4-Channel system (included)
Motor Size: 3136-1200Kv
Product Length: 37.3 in (947mm)
Propeller Size: 10 x 5
Receiver: Included
Recommended Motor Battery: 11.1V 3S 1300mAh 25C LiPo (included)
Retracts: No
Servos: 5 x 9g Servo
Speed Control: Included
Trim Scheme Colors: Yellow and White
Wing Area: 393.7 in sq (25.4dm sq)
Wing Loading: 0.11oz/in sq (39.4g/dm sq)
Wingspan: 48 in (1220mm)- Specs
Product Specifications
Part Number FMM111RF Kit Type RTF Approximate Assembly Time Less than 1 Hour Approximate Flight Time 10-15 minutes CG (Center of Gravity) 50-60mm(From Leading Edge) Charger Included Completion Level Ready-To-Fly Flaps No Power Type Electric Landing Gear Optional landing gear is included Minimum Required Radio 4-Channel system (included) Motor Size 3136-1200Kv Product Length 37.3 in (947mm) Propeller Size 10 x 5 Receiver Included Recommended Motor Battery 11.1V 3S 1300mAh 25C LiPo (included) Retracts No Servos 5 x 9g Servo Speed Control Included Trim Scheme Colors Yellow and White Wing Area 393.7 in sq (25.4dm sq) Wing Loading 0.11oz/in sq (39.4g/dm sq) Wingspan 48 in (1220mm) - Reviews
