- Overview
Overview

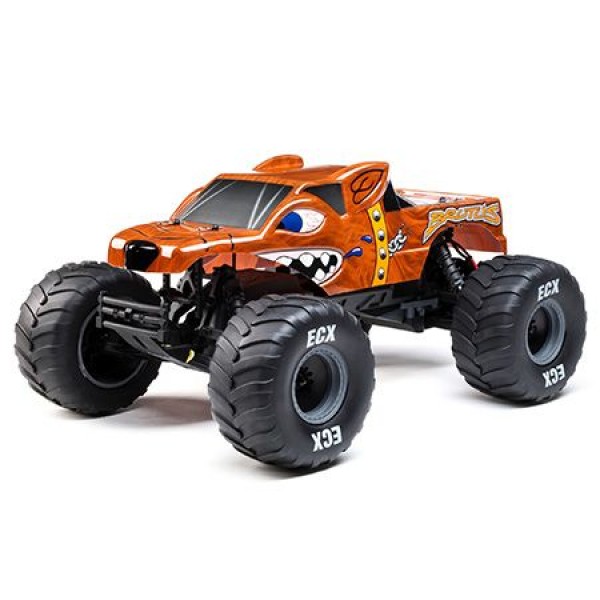

The ECX® Brutus Monster Truck is a true-to-life monster truck designed to intimidate the rest of the backyard bashers. Designed for new drivers in mind, the Brutus allows you to use your preferred battery/charger bundle. Of course, the incredible 2WD drivetrain, oil-filled coil-over shocks, and brand new wheel, tire and body design create plenty of havoc wherever it roams. Finally, the durable nylon composite chassis is powered by a high torque 550 sized 12T Dynamite® motor giving you the kind of thrills only an ECX vehicle can deliver. Pick your power, charge it up, and unleash the mad dog!
Includes:
- (1) Ecx Brutus 1/10 2WD RTR Monster Truck with:
- (1) Dynamite® 550 12T Motor (installed)
- (1) Dynamite® 60A WP Brushed ESC (installed)
- (1) Spektrum™ SRX200 2-CH Receiver (installed)
- (1) Spektrum™ STX2® 2-CH Transmitter
- (4) AA Alkaline Batteries (for transmitter)
- (1) Product Manual
Requires:
- NiMH or 2-cell LiPo Battery with EC3/IC3 connector
- Compatible charger
features
- Battery/charger ready
- Officially-Licensed Team Scream trim scheme
- Aggressive off-road Chevron tires and wheels
- Dynamite® Brushed 550 12-turn motor
- Spektrum STX2 Radio System
- Spektrum™ Servo with servo saver
- Durable Nylon Composite Chassis
- Oil filled, coil over shocks
- Full ball bearings
- Lightweight gears
- 60A ESC
- Aluminum upgrades available
- Fully-assembled with no building required
Approximate Assembly Time: Less than 1 HourSpecs
Ball Bearings: Complete less steering, metal bushings in steering assembly
Batteries: One 6-cell 7.2V NiMH, or one 2S LiPo with EC3 connector (sold separately)
Battery Dimensions: 5.2 x 1.9 x 0.9" (131 x 47 x 24mm)
Body: Molded polycarbonate trimmed, painted and screened monster truck
Bushing Material: Metal
Charger: Compatible with selected battery (sold separately)
Chassis: Injection molded nylon composite
Completion Level: Ready-To-Run
Differential: Gear, not sealed
Drivetrain: 2WD
Gear Pitch: 48-Pitch
Ground Clearance: 1.5" (38.1mm)
Height: 8.25" (209.5mm)
Length: 17.5" (444.5mm)
Motor Size: 550, 12 turn
Motor Type: Dynamite 12T Brushed
Pinion: 16T
Radio: Spektrum STX2, 2-channel
Servos: Spektrum SPMX603 waterproof steering servo
Shock Type: Oil-filled
Size/Scale: 1/10
Speed Control: Dynamite WP 60A, with EC3 battery connector
Spur Gear: 93T
Suspension: Independent
Tire Tread: ECX MT chevron
Track: 10" (254mm), distance betwen outer edges of tires measured side-to-side
Vehicle Type: 1/10 scale Monster Truck
Water-Resistant: Yes
Weight: 5lb (2.25kg)
Wheel Hex Size: 12mm Hex
Wheel Type: 12mm hex
Wheelbase: 11.75" (298.4mm)
Width: 12.5" (317.5mm)Product Videos
- Specs
Product Specifications
Part Number ECX03055 Scale 1/10 Drivetrain 2WD Kit Type No Battery Approximate Assembly Time Less than 1 Hour Ball Bearings Complete less steering, metal bushings in steering assembly Batteries One 6-cell 7.2V NiMH, or one 2S LiPo with EC3 connector (sold separately) Battery Dimensions 5.2 x 1.9 x 0.9" (131 x 47 x 24mm) Body Molded polycarbonate trimmed, painted and screened monster truck Bushing Material Metal Charger Compatible with selected battery (sold separately) Chassis Injection molded nylon composite Completion Level Ready-To-Run Differential Gear, not sealed Drivetrain 2WD Gear Pitch 48-Pitch Ground Clearance 1.5" (38.1mm) Height 8.25" (209.5mm) Length 17.5" (444.5mm) Motor Size 550, 12 turn Motor Type Dynamite 12T Brushed Pinion 16T Radio Spektrum STX2, 2-channel Servos Spektrum SPMX603 waterproof steering servo Shock Type Oil-filled Size/Scale 1/10 Speed Control Dynamite WP 60A, with EC3 battery connector Spur Gear 93T Suspension Independent Tire Tread ECX MT chevron Track 10" (254mm), distance betwen outer edges of tires measured side-to-side Vehicle Type 1/10 scale Monster Truck Water-Resistant Yes Weight 5lb (2.25kg) Wheel Hex Size 12mm Hex Wheel Type 12mm hex Wheelbase 11.75" (298.4mm) Width 12.5" (317.5mm) - Reviews
