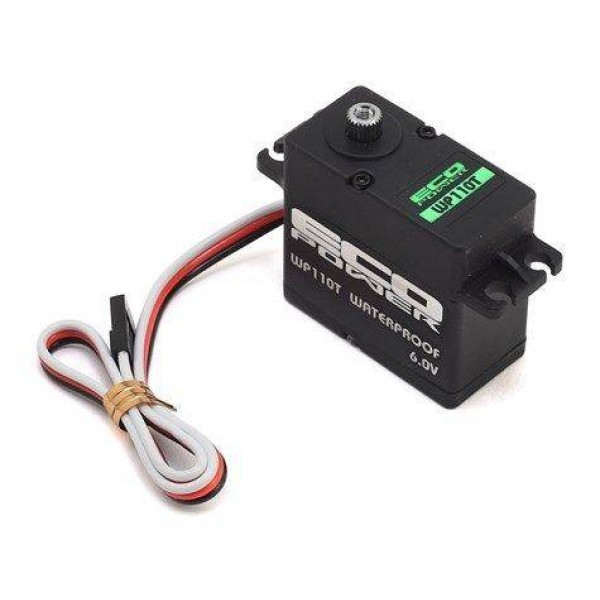

EcoPower Standard Digital High Torque Cored Waterproof Servo with Metal Gears


LOADING IMAGES
EcoPower Standard Digital High Torque Cored Waterproof Servo with Metal Gears
$39.99
This is a EcoPower part #ECP-110T, WP110T Cored Servo. Digital, high torque, metal gear, waterproof, and standard in size

Availability: In stock*

Only 5 left

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The EcoPower WP110T Cored Waterproof "High Torque" Metal Gear Servo is a great choice if you are looking for an affordable, waterproof RTR upgrade. The WP110T pumps out 280 oz-in of torque at 6.0V, making it an excellent option for 1/10 monster trucks, 2WD and 4WD 1/10 buggies, as well as 1/8 scale buggies, boats, and other surface applications that can benefit from a high torque, waterproof servo.

The WP110T is waterproof up to 1-meter so driving in the rain, puddles, snow and mud are not an issue. With .16 transit speed at 6.0V, the WP110T is fast enough to make is a good choice for 2 speed and dig shift servo applications as well! Metal gears were used to create a durable gear train that is easily serviced, and the plastic case with aluminum center section keeps the servo running cool while remaining lightweight. Plus, the digital circuitry allows compatibility with vehicles that use traction control/gyro systems, making the WP120T a viable option for models that are equipped with a stability system. Want more? We back it with a 1 year warranty - so grab a handful of throttle and drive with confidence knowing that the weather is not going to slow you down.

features

  • Affordable option for 1/10 monster trucks, 2WD and 4WD 1/10 buggies, 1/8 scale buggies, boats and more!
  • Waterproof up to 1 meter
  • 280 oz-in of torque @ 6.0V, and .16 transit speed
  • Digital circuitry
  • Cored motor
  • Metal gears
  • Lightweight plastic upper and lower case w/black anodized aluminum center case
  • Dual ball bearings
  • 220mm servo lead
  • Includes plastic star, 4 way, dual, single and round arm type servo horns and mounting hardware
  • 1 Year warranty against manufacturer defects

Specs

Servo Model : WP110T
Recommended Application: 1/10 to 1/8 Scale Surface
Waterproof : Yes
Operating Voltage: 4.8V - 6.0V
Operating Temperature: 14° to 140° F (-10 to +60° C)
Operating Speed @ 4.8V: 0.18/60° sec
Operating Speed @ 6.0V: 0.16/60° sec
Dynamic Torque @ 4.8V : 175 oz-in (12.6 kg-cm)
Dynamic Torque @ 6.0V: 280 oz-in (20.1 kg-cm)
Motor Type: Cored DC
Output Shaft: 25 Tooth
Gears: Metal w/Plastic mid gear
Weight: 53g
Pulse/Frequency: 1520μs / 333hz

Product Videos

Specs

Product Specifications

Part NumberECP-110T
Servo ModelWP110T
Recommended Application1/10 to 1/8 Scale Surface
WaterproofYes
Operating Voltage4.8V - 6.0V
Operating Temperature14° to 140° F (-10 to +60° C)
Operating Speed @ 4.8V0.18/60° sec
Operating Speed @ 6.0V0.16/60° sec
Dynamic Torque @ 4.8V175 oz-in (12.6 kg-cm)
Dynamic Torque @ 6.0V280 oz-in (20.1 kg-cm)
Motor TypeCored DC
Output Shaft25 Tooth
GearsMetal w/Plastic mid gear
Weight53g
Pulse/Frequency1520μs / 333hz
