Overview

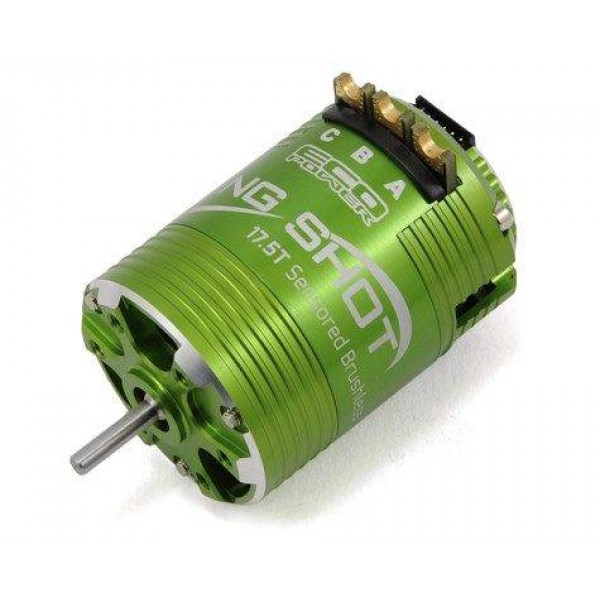

This is the EcoPower Sling Shot 17.5 Turn Sensored Brushless Motor. This sensored 17.5 Turn ROAR spec motor features a high torque 12.5mm sintered Neodymium rotor to deliver the torque needed for competitive 17.5 class racing. When combined with its hand wound, high purity copper stator you get a low resistance 17.5 motor that performs like a beast.
Other features include a vented can that helps to keep the motor running cool and reduces weight, fully adjustable timing, and dual sensor ports for easy installation in a variety of chassis configurations. These parts have been combined to deliver high end power, efficiency and reliability, at a sport motor price. Keep your competition in the crosshairs. Take aim and fire with the Sling Shot.features
- ROAR Approved
- Dual Sensor Ports
- High Purity Copper for Low Resistance
- Sintered Neodymium Rotor
- Dual Ball Bearings
- Adjustable Timing
- Hand Wound
- 200mm Braided Sensor Wire Included
- 12.5 Torque Rotor Installed (ECP-8011)
- Optional 12.3mm RPM Rotor available (ECP-8010 - not included)
Model: Sling ShotSpecs
Turns: 17.5
Watts: 130W
Rotor: 12.5 x 7.2
kV: 2,200
Max Current: 34A
Unloaded Current: 1.0A
Internal Resistance: 0.0514
Shaft Diameter: 3.175mm
Input Voltage: 3.7V ~ 11.1V
Weight: Approx. 178g- Specs
Product Specifications
Part Number ECP-8000 Model Sling Shot Turns 17.5 Watts 130W Rotor 12.5 x 7.2 kV 2,200 Max Current 34A Unloaded Current 1.0A Internal Resistance 0.0514 Shaft Diameter 3.175mm Input Voltage 3.7V ~ 11.1V Weight Approx. 178g - Reviews
