- Overview
Overview

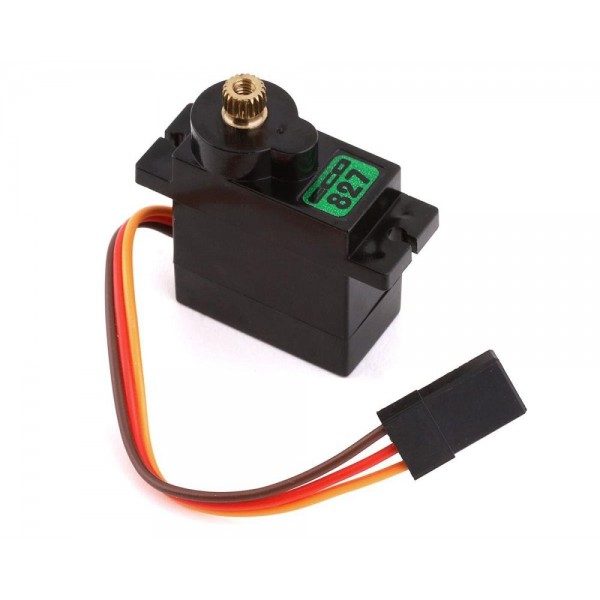

The EcoPower 827 12g Digital Metal Gear Micro Servo is an affordable, high voltage "mighty micro" upgrade. This servo is a great choice for the Dig/Shift servo in the Axial SCX10 III, as well as a Dig servo in the Axial Capra. The servo saver adapter is included! Plus, true high voltage compatibility means no more complicated wiring to protect your accessory servos when running a high voltage steering servo.
The 827 can also be used as a steering servo upgrade for the Axial SCX24 when combined with the optional Samix Mount (SAMSCX24-6068E-BK) Hot Racing Servo Mount (HRASXTF24M01). The 827 holds 15% more torque than other optional SCX24 servo upgrades on the market and is the first to offer high voltage for under $15.
The EcoPower 827 fits a wide range of micro servo applications, including the Losi Mini-T 2.0 and Mini-B, Axial 1/18 Yeti Jr, a multitude of aircraft and many others. The servo features a durable metal gear train, digital circuitry for increased efficiency and reliability, as well as an included 245mm servo lead extension, servo saver adapter and servo horns.Includes:
- EcoPower 827 Servo
- Molded adaptor for Axial Servo Saver Horn w/12mm flat head screw
- Servo Extension Wire
- Molded servo horns w/hardware
Notes:
Installation photo shows black servo horn which was achieved with Tamiya TS-6 Matte Black plastics paint (TAM85006); servo horn comes white.
features
- High Voltage Micro Servo
- Upgrade for SCX10 III Dig and Shift Servo
- Upgrade for Capra Dig Servo
- Upgrade for SCX24 Steering Servo (requires Hot Racing Servo Mount)
- Includes Servo Saver Output Adapter for SCX10 III and Capra
- Metal Gears
- 70mm Servo Lead & Included 245mm Extension
Operating Voltage: 6.0V to 8.4VSpecs
Operating Speed:
* @6.0V: 0.12 sec/60
* @8.4V: 0.10 sec/60
Torque:
* @6.0V: 29.1oz-in (2.1kg-cm)
* @8.4V: 37.5oz-in (2.7kg-cm)
Weight: 12g
Gears: Metal
Motor Type: Cored DC
Application: Small Scale Surface & Air- Specs
Product Specifications
Part Number ECP-827 Operating Voltage 6.0V to 8.4V Operating Speed * @6.0V 29.1oz-in (2.1kg-cm) * @8.4V 37.5oz-in (2.7kg-cm) Torque Weight 12g Gears Metal Motor Type Cored DC Application Small Scale Surface & Air - Reviews
