EcoPower 5-Cell 6.0V 1500mAh NiMH Hump Receiver Pack


LOADING IMAGES
EcoPower 5-Cell 6.0V 1500mAh NiMH Hump Receiver Pack
EcoPower 5-Cell 6.0V 1500mAh NiMH Hump Receiver Pack
$17.06

[ECP-5001]


Be the first to review this product

Sign up for price alert

This is a EcoPower part #ECP-5001, 5-Cell 6.0V 1500mAh NiMH Hump Receiver Pack

Availability: In stock*

OR
* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

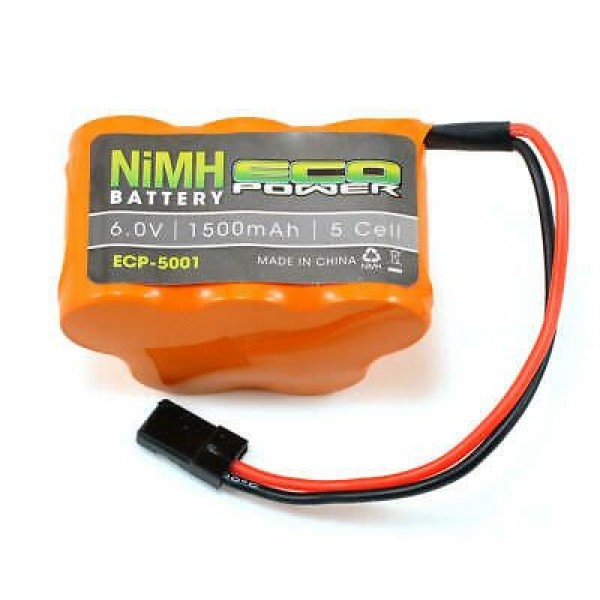

This is an EcoPower 5-Cell, 6.0V, 1500mAh NiMH Hump style Receiver Pack. This receiver pack is built using quality 2/3A size 1500mAh NiMH cells and features a JR style connector. This pack will fit into most 1/8th scale vehicles that use a hump style receiver pack. The recommended charge rate for these batteries is 1A for the best battery life and run time, and we do not recommend you charge them at more than 1C (1.5A Max).

Specs

Battery Model: ECP-5001
Weight: 114g
Type: NiMH
Capacity: 1500mAh
Voltage: 6.0V nominal
Connector Type: JR
Configuration: 3x2 Hump
Number of Cells: 5 Cell
Dimensions (WxLxH): 31.35x53x31.7mm
Maximum Charge Rate: 1C (1.5A)

Recommended guidelines for handling 2/3A NiMH batteries:
1. Charge the battery with a quality charger, at a maximum current of 1.5A.
2. Charger cut-off setting: Peak voltage = 5mV per cell, Temperature <55ºC, and best with timer. [Example on Peak voltage calculation: 6-cell pack = 5mV x 6 = 0.03V]
3. The battery can offer high current discharge, and are rated to a level of 5~10A (plug dependent).
4. If you expect to leave the battery idle for >2 weeks, charge it for 1/3 capacity (say, 1A for 15 minutes)
5. Avoid storing the battery in hot or humid environment. Best temperature would be around 20~25ºC.
Specs

Product Specifications

Part NumberECP-5001
Battery ChemistryNiMH
Battery Voltage6.0V (5-cell)
Capacity mAh1500
Battery ModelECP-5001
Weight114g
TypeNiMH
Capacity1500mAh
Voltage6.0V nominal
Connector TypeJR
Configuration3x2 Hump
Number of Cells5 Cell
Dimensions (WxLxH)31.35x53x31.7mm
Maximum Charge Rate1C (1.5A)
Recommended guidelines for handling 2/3A NiMH batteries
2. Charger cut-off settingPeak voltage = 5mV per cell, Temperature <55ºC, and best with timer. [Example on Peak voltage calculation: 6-cell pack = 5mV x 6 = 0.03V]
