- Overview

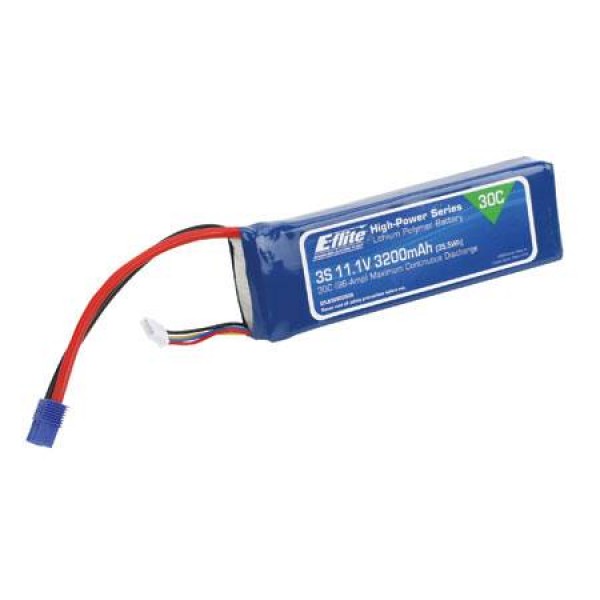

This is an E-Flite EFLB32003S30 LiPo Battery, 3200mAh 30C 11.1V (3-cell)
Notes:
WARNING: Lithium Polymer (Li-Po) batteries come partially charged and are significantly more volatile than the alkaline, Ni-Cd or NiMH batteries used in RC applications. Keep batteries out of reach of children, unless supervised by a responsible adult. All interactions and warnings found on the sheet inside of this cad must be followed exactly. Mishandling of Li-Po batteries can result in a fire.
Before handling and first use, visually and physically inspect the battery pack, wire leads, and connectors to ensure there are no loose connections which may cause short circuit and eventual fire.
By handling, charging or using this Li-Po battery you assume all risks associated with Li-Po batteries.features
- Capable of maximum continuous discharge rates up to 30C
- Equipped with balancing leads and a connector that are compatible with most balancers and balancing chargers
- Equipped with E-flite EC3 connector on main power leads
- Ideal for use in 15- to 32-size airplanes and 15-size (69-70mm) ducted fans
- Good match for Power 15, Power 25, Power 32 outrunners, and BL15 DF motor.
Battery Balance Connector: JST-XHSpecs
Battery Voltage: 11.1V
Cell Configuration: 3S1P
Charge Protection Circuitry: No
Connector Type: EC3
Hard Case: No
Height: 0.80 in (20.5mm)
Length: 5.20 in (131mm)
Maximum Continuous Discharge Current: 96A
Maximum Continuous Discharge Rate: 30C
Number of Cells: 3
Weight: 9.10 oz (259g)
Width: 1.70 in (43.0mm)
Wire Gauge: 12 AWG- Specs
Product Specifications
Part Number EFLB32003S30 Battery Chemistry LiPo Battery Voltage 11.1V (3-cell) Capacity mAh 3200mAh Discharge Rate 30C Battery Balance Connector JST-XH Battery Voltage 11.1V Cell Configuration 3S1P Charge Protection Circuitry No Connector Type EC3 Hard Case No Height 0.80 in (20.5mm) Length 5.20 in (131mm) Maximum Continuous Discharge Current 96A Maximum Continuous Discharge Rate 30C Number of Cells 3 Weight 9.10 oz (259g) Width 1.70 in (43.0mm) Wire Gauge 12 AWG - Reviews
