Overview

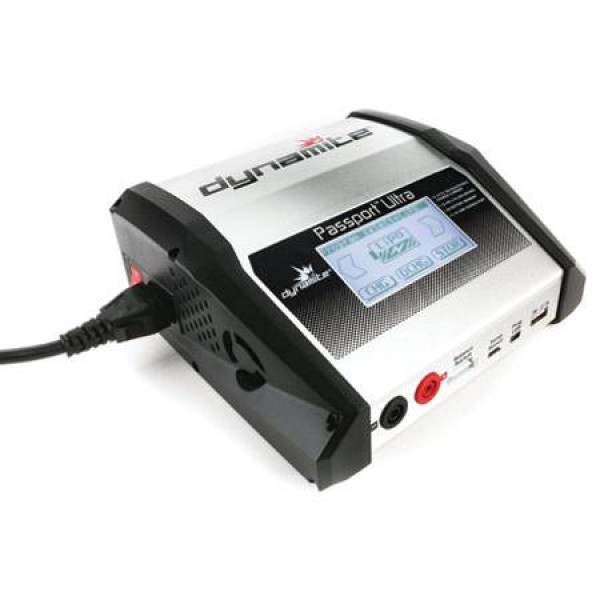

The Passport Ultra charger is a rugged, small footprint, multi-chemistry, AC/DC battery charger with a fully-functional touchscreen user interface designed for quick charging of all your hobby batteries. The Passport Ultra is ideal for anyone that wants to spend less time charging and more time enjoying their hobby. AC powered and featuring a wide range of selectable charge/discharge currents and features to fit your batteries needs, the Passport Ultra is capable of charging surface, air and marine of any chemistry and is backed by a Dynamite 5-year warranty.
Notes:
Firmware upgrade download needed in order to charge Hi-Voltage LiPo batteries.
features
- 5-year limited warranty
- 100W powerful charging and 20 Battery Memory
- 0.1 to 10 amps for quick recharging
- Charges NiMH/LiPo/LiFe/LiIon/NiMH/NiCd and Pb
- 1-6S LiPo Balancing
- 2.1A USB port for charging smart/mobile devices
- Includes an insulated banana to EC3™ battery adapter and a JST-XH balance adapter
- CETL compliant for sale into Canada
Ampere Meter: Yes - on main LCD displaySpecs
Battery Balance Connector: JST_XH
Battery Temperature Monitoring: Yes - Temperature Sensor not included
Battery Type: LiFe, LiIon, LiPo, NiCd, NiMH, Pb
Cooling Method: Fan
Discharge: Yes
Display: TFT Color Touch Screen, 400 x 240 Pixel
Fuse: No
Height: 2.95 in (75mm)
Input: 100â240V AC or 11â18V DC
Input Connector: AC cord, detachable, North American plug, DC cord, detachable, alligator clips
Integrated Balancing: Yes - Internal Balancer & External Adapter
Length: 8.74 in (222mm)
Low Input Voltage Protection: Yes
Maximum Continuous Discharge Rate: 0.1â5.0A / 25W
Model Memory: Yes - 20 battery settings
Normal/Standard Charge Rate: 0.1â10.0A / 100W
Output Connector: Banana Plug
Over Current Protection: Yes
PC Connectivity: Yes â USB
PC Required: Yes
Peak Detection: Yes
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes - Incremental (0.1A Increments)
Short Circuit Protection: Yes
Software Updates: Yes â via USB port
Thermal Protection: Yes
Voltage Meter: Yes - on main LCD display
Weight: 4.0 lbs (1.8kg)
Width: 6.89 in (175mm)- Specs
Product Specifications
Part Number DYNC3000 Supported Chemistries LiPo, LiFE, Li-Ion, NiMH, NiCD, Pb (lead acid) Max Watts 100W Input Source AC, DC Ampere Meter Yes - on main LCD display Battery Balance Connector JST_XH Battery Temperature Monitoring Yes - Temperature Sensor not included Battery Type LiFe, LiIon, LiPo, NiCd, NiMH, Pb Cooling Method Fan Discharge Yes Display TFT Color Touch Screen, 400 x 240 Pixel Fuse No Height 2.95 in (75mm) Input 100â240V AC or 11â18V DC Input Connector AC cord, detachable, North American plug, DC cord, detachable, alligator clips Integrated Balancing Yes - Internal Balancer & External Adapter Length 8.74 in (222mm) Low Input Voltage Protection Yes Maximum Continuous Discharge Rate 0.1â5.0A / 25W Model Memory Yes - 20 battery settings Normal/Standard Charge Rate 0.1â10.0A / 100W Output Connector Banana Plug Over Current Protection Yes PC Connectivity Yes â USB PC Required Yes Peak Detection Yes Reverse Polarity Protection Yes Safety Timer Yes Selectable Charge Rate Yes - Incremental (0.1A Increments) Short Circuit Protection Yes Software Updates Yes â via USB port Thermal Protection Yes Voltage Meter Yes - on main LCD display Weight 4.0 lbs (1.8kg) Width 6.89 in (175mm) - Reviews
