- Overview
Overview

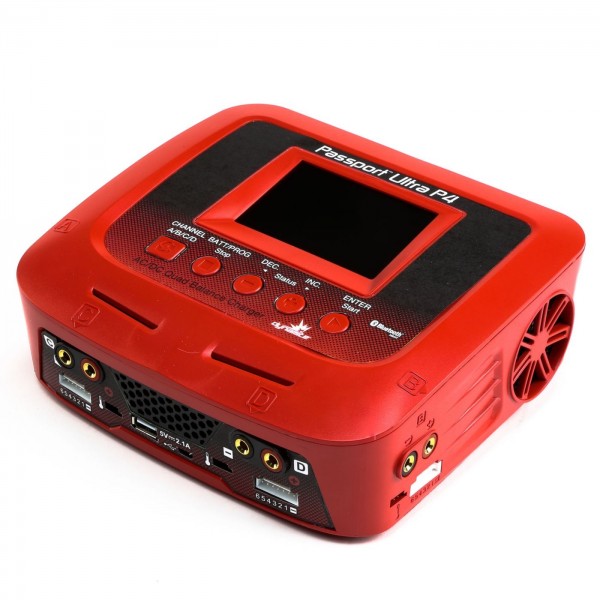

The Dynamite® Passport™ P4 AC/DC Four Port Multicharger represents the pinnacle of premium, high-performance chargers. With 200W output capability, the Passport P4 can charge low-to-medium capacity Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, you get the full gamut of charging features, including the ability to charge virtually all battery types and intuitive LCD display.
features
- Powerful 200W AC/DC multicharger
- Four channels charge four different kinds of batteries simultaneously
- Charges:
- 1-6S LiPo/LiIOn/LiFe/LiHV batteries
- 1-15 cell NiMH/NiCD batteries
- 2-20V Pb (lead acid) batteries
- Selectable charge rate of 0.1A increments
- Channels A/B have charge rates of 0.1 - 10A
- Channels C/D have charge rates of 0.1 - 5A
- Dynamite Dashboard - smart phone control and monitoring via Bluetooth, compatible with Android and iOS
- Backlit, 480 x 320, color LCD screen
- Built-in balancing ports
- 40 Battery Memory (10 Per Channel)
- Thermal, reverse polarity, short circuit protection, over-current and low voltage protection
- Safety timer
- Software updates available via USB port (external adapter required)
- 5-Year limited warranty
- Dynamite Dashboard
- The Dynamite Dashboard provides seamless integration to select Dynamite "P" Series chargers by bringing real-time monitoring to your mobile device. You can monitor the charge status of your batteries, view real time battery stats including; battery type, battery cells, charge current, voltage, battery capacity, battery charge level and more. Simply download the app, pair your mobile device to the compatible Dynamite P-Series charger via Bluetooth and take advantage of viewing real-time charge stats while monitoring your battery's charge process. With Bluetooth communication, the Dynamite Dashboard puts your charge setting control at your fingertips.
- In addition, and thanks to Dynamite's QR Scan with Smartphone control functionality, you can scan the QR code on your Dynamite Reaction 2.0 batteries to automatically set the optimal charge settings for that specific battery. This functionality is only available using Dynamite Reaction 2.0 batteries with integrated QR code functionality and makes charging easy, convenient and safe.
Ampere Meter: Yes - on main LCD displaySpecs
Battery Balance Connector: Four JST_XH
Battery Temperature Monitoring: Y - Temperature Sensor Not Included
Battery Type: LiPo/LiIon/LiFe/LiHV: 1-6cells, NiMH/NiCd: 1-15cells, Pb: 2 - 20V
Cooling Method: Fan
Discharge: .1A-2.0A Rate
Display: 480x320 color LCD
Height: 2.8 in (71mm)
Input Voltage: 100-240V AC or 11-18V DC
Integrated Balancing: Y - Internal Balancer & External Adapter
Length: 7.17 in (182mm)
Maximum Charge Rate: Channel A/B: 0.1-10A; Channel C/D: 0.1-5A
Model Memory: Yes. 10 x 4
Output Connector: Banana to IC3 x 4, banana to stripper x 2
PC Connectivity: Yes - USB, external adapter required
Peak Detection: Yes
Selectable Charge Rate: Yes- incremental (0.1A increments)
Software Updates: Yes - via USB port
Weight: 2.94 lbs (1335g)
Width: 7.76 in (197mm)- Specs
Product Specifications
Part Number DYNC3017 Supported Chemistries LiPo, LiFE, Li-Ion, LiHV, NiMH, NiCD, Pb (lead acid) Input Source AC, DC Ampere Meter Yes - on main LCD display Battery Balance Connector Four JST_XH Battery Temperature Monitoring Y - Temperature Sensor Not Included Battery Type LiPo/LiIon/LiFe/LiHV: 1-6cells, NiMH/NiCd: 1-15cells, Pb: 2 - 20V Cooling Method Fan Discharge .1A-2.0A Rate Display 480x320 color LCD Height 2.8 in (71mm) Input Voltage 100-240V AC or 11-18V DC Integrated Balancing Y - Internal Balancer & External Adapter Length 7.17 in (182mm) Maximum Charge Rate Channel A/B: 0.1-10A; Channel C/D: 0.1-5A Model Memory Yes. 10 x 4 Output Connector Banana to IC3 x 4, banana to stripper x 2 PC Connectivity Yes - USB, external adapter required Peak Detection Yes Selectable Charge Rate Yes- incremental (0.1A increments) Software Updates Yes - via USB port Weight 2.94 lbs (1335g) Width 7.76 in (197mm) - Reviews
