- Overview
Overview

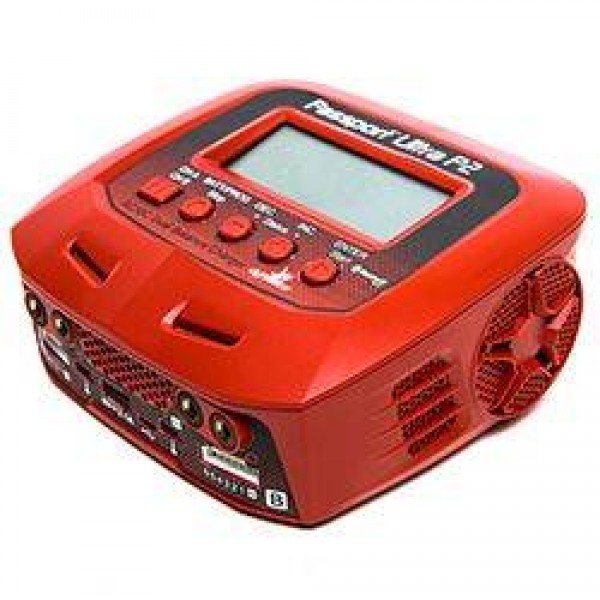

The Dynamite® Passport™ P2 AC Plus 2 Port AC/DC Multi-Charger represents the pinnacle of premium, high-performance chargers. With dual 100W output capability, the Passport P2 can charge Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, you get the full gamut of charging features, including the ability to charge virtually all battery types and intuitive LCD display.
Dynamite Dashboard
The Dynamite Dashboard provides seamless integration to select Dynamite "P" Series chargers by bringing real-time monitoring to your mobile device. You can monitor the charge status of your batteries, view real time battery stats including; battery type, battery cells, charge current, voltage, battery capacity, battery charge level and more. Simply download the app, pair your mobile device to the compatible Dynamite P-Series charger via Bluetooth and take advantage of viewing real-time charge stats while monitoring your battery's charge process. With Bluetooth communication, the Dynamite Dashboard puts your charge setting control at your fingertips.
Thanks to Dynamite's QR Scan with Smartphone control functionality, you can scan the QR code on your Dynamite Reaction 2.0 batteries to automatically set the optimal charge settings for that specific battery making using Dynamite "P" Series chargers easy, convenient and safe. Additionally, you have the ability to create your own QR codes for any battery line/specs.features
- Powerful 100W AC/DC Multi-Charger
- Two channels charge two different kinds of batteries simultaneously
- Charges Lipo, LiHV, LiFe NiMH/NiCd, and Pb batteries
- Charges 1-6 cell Lipo/ LiHV/LiFe, 1-15 cell NiMh/NiCd, and 2-20V Pb
- Dynamite Dashboard-Smart phone control and monitor via Bluetooth
- High visibility, simplified LCD interface
- Built-in balancing ports
- Integrated voice functionality
- 5-year limited warranty
Ampere Meter: Yes - on main LCD displaySpecs
Battery Balance Connector: XH Balancing Adapter Board
Battery Temperature Monitoring: Yes - Temperature Sensor not included
Battery Type: 1-2S LiFe, LiIon, LiPo; 1-2C NiCd, NiMH; 2-12V Pb
Cooling Method: Cooling fan
Discharge: Yes
Display: Yes
Height: 2.6" (67mm)
Input Connector: AC cord, detachable, North American plug
Input Voltage: 100-240V AC or 11-18V DC
Integrated Balancing: Yes - Internal Balancer & External Adapter
Length: 5.5" (140mm)
Low Input Voltage Protection: Yes
Maximum Charge Rate: 0.1A-10A x 2
Maximum Continuous Discharge Rate: 0.10A-2.0A x 2
Model Memory: Yes
Output: 100W max AC, 200W DC
Output Connector: Banana Plug to EC3
Over Current Protection: Yes
PC Required: No
Peak Detection: Yes
Programmable: Yes
Reverse Polarity Protection: Yes
Safety Timer: Yes
Selectable Charge Rate: Yes - Incremental (0.1A Increments)
Short Circuit Protection: Yes
Thermal Protection: Yes
Voltage Meter: Yes - on main LCD display
Weight: 1.4lbs (668g)
Width: 6.0" (153mm)- Specs
Product Specifications
Part Number DYNC3016 Supported Chemistries LiPo, LiFE, Li-Ion, NiMH, NiCD, Pb (lead acid) Input Source AC Ampere Meter Yes - on main LCD display Battery Balance Connector XH Balancing Adapter Board Battery Temperature Monitoring Yes - Temperature Sensor not included Battery Type 1-2S LiFe, LiIon, LiPo; 1-2C NiCd, NiMH; 2-12V Pb Cooling Method Cooling fan Discharge Yes Display Yes Height 2.6" (67mm) Input Connector AC cord, detachable, North American plug Input Voltage 100-240V AC or 11-18V DC Integrated Balancing Yes - Internal Balancer & External Adapter Length 5.5" (140mm) Low Input Voltage Protection Yes Maximum Charge Rate 0.1A-10A x 2 Maximum Continuous Discharge Rate 0.10A-2.0A x 2 Model Memory Yes Output 100W max AC, 200W DC Output Connector Banana Plug to EC3 Over Current Protection Yes PC Required No Peak Detection Yes Programmable Yes Reverse Polarity Protection Yes Safety Timer Yes Selectable Charge Rate Yes - Incremental (0.1A Increments) Short Circuit Protection Yes Thermal Protection Yes Voltage Meter Yes - on main LCD display Weight 1.4lbs (668g) Width 6.0" (153mm) - Reviews
