- Overview
Overview

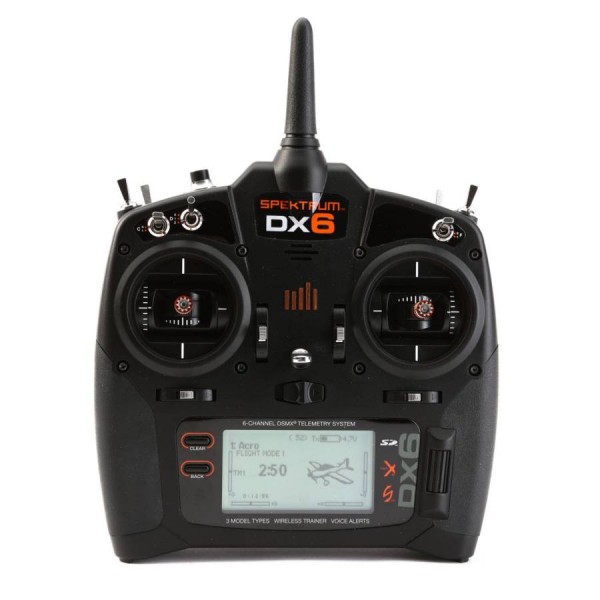

The DX6 has been designed from the ground up to deliver way more than you would ever expect from a 6-channel transmitter in its price range. Instead of having to content yourself with a handful of settings for a couple of model types, the remarkably affordable DX6 gives you an abundance of programming features for airplanes, helicopters and sailplanes. You also get other extras like voice alerts, a wireless trainer link and enough internal memory for up to 250 models.
features
- Dual antenna diversity
- Ergonomically designed case with comfortable rubber grips
- Programmable and customizable voice alerts
- Capable of storing 250 models on the transmitter, expandable further by saving on an SD card or PC
- Direct System Menu Access mean there is no need to power off the transmitter to access all menus
- Supports Air/Heli/Sailplane model types
- Easy to use Spektrum™ AirWare ™ software offers the same proven programming found in more expensive radios
- Smooth, precise Four Bearing Gimbals
- AR610 6 Channel full range receiver included
- Programming capability for most sailplanes, can support 4 Sailplane wing types and 3 tail types
- Supports the most popular Spektrum Telemetry sensors
- Includes 4 AA Alkaline batteries, optional Lithium Ion battery with charger (available separately)
- 5 programmable mixes - all mixes are selectable to be normal or 7 point curve multi-point mixes
- Dual Aileron, Elevon, and V-Tail Differential
- 7 aircraft wing types and 6 tail types
- 7 Swashplate types
- 7-point throttle (air and heli) and pitch curves (heli) Adjustable for smooth throttle and pitch curves
- Intuitive SimpleScroll™ programming interface
- Advanced DSMX® technology (DSM2®† compatible)
- SD card slot for updating firmware, expanding memory and sharing setups (SD Card is not included)
- Activate bind mode from the menu or a button without having to power off
Band: 2.4GHzSpecs
Channels: 6
Computer Radio: Yes
Modulation: DSMX
Range: Full
Receiver: AR610 included
Telemetry: Yes- Specs
Product Specifications
Part Number SPM6750 Band 2.4GHz Channels 6 Computer Radio Yes Modulation DSMX Range Full Receiver AR610 included Telemetry Yes - Reviews
- Questions & Answers
- Must be logged in to ask a question.
Sort By:
No questions yet. Be the first to ask the question! - Resources
- Manuals
- DX6 6-Channel DSMX® Transmitter Manual - English (14.47 MB)
- DX6 6-Channel DSMX® Transmitter Manual - French (12.79 MB)
- DX6 6-Channel DSMX® Transmitter Manual - German (12.83 MB)
- DX6 6-Channel DSMX® Transmitter Manual - Italian (12.85 MB)
- DX6 6-Channel DSMX® Transmitter Manual - Spanish (12.81 MB)
- DX6 Manual Addendum (482 KB)
- Spektrum Airware Software Updates - English (186 KB)
- Spektrum Airware Software Updates - French (184 KB)
- Spektrum Airware Software Updates - German (185 KB)
- Spektrum Airware Software Updates - Italian (185 KB)
- Spektrum Airware Software Updates - Spanish (185 KB)
- Telemetry Specs (Developer Guidelines) (476 KB)
