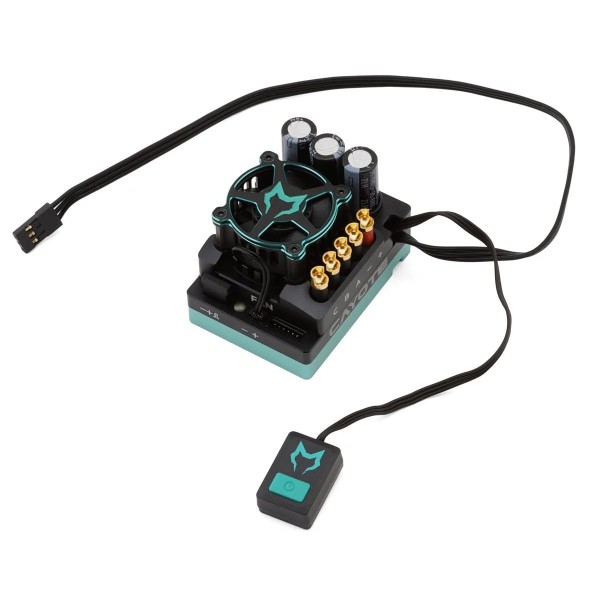

Cayote Sensored Brushless Motor with ESC Bluetooth, 1/8 200A

The Cayote Crest 8 1/8 200A Sensored Brushless ESC is engineered for high-performance RC applications, delivering precise power control and reliability. With advanced cooling technology and customizable settings, this ESC adapts to various racing conditions. Additionally, this ESC includes an optional glitch buster to help smooth out voltage fluctuations and interference. Whether you're pushing the limits on the track or tackling challenging terrain, the Crest 8 ESC provides the control and durability needed for intense competition.

• Built-in Bluetooth compatibility with the Cayote Team app
• Super large 48° boost and turbo timing
• Offline data recording for performance tracking
• Over thirty-three adjustable parameters
• Built-in super switching mode BEC
• Smooth and stable power delivery
• Professional reversing shutdown system
• Multiple protection functions for long-term reliability
• Advanced cooling system for heat dissipation
• Lightweight and durable construction

Suggested Application: 1/8 Buggies, Truggies & Trucks
Motor Type: Brushless - Sensored/Sensorless
Input Voltage: 2-4S LiPo (7.4-14.8V)
Continuous Current: 200A
Peak Current: 1080A
Dimensions (LxWxH): 2.24x1.64x1.57in (56.8x41.6x40mm)
Weight: 4.3oz (122g)
Motor Limits: 4268/4274 3000kV Maximum with 4S Lipo
BEC Voltage: 6.0/7.4V
BEC Continuous Current: 8A
BEC Peak Current: 12A
Motor Connector: Solder
Battery Connector: Solder
Motor Wire: 10AWG
Battery Wire: 13AWG
Throttle Wire: -
Programmable: Yes, with Cayote Xlink Program Box or Cayote Team App
Powerful Boost & Turbo Timing:
Featuring a super large 48° boost and turbo timing, the Crest 8 ESC maximizes power output while optimizing motor efficiency. This advanced timing system enhances acceleration and top speed, making it ideal for competitive racing. The fine-tuned performance ensures smoother throttle response and increased stability during high-speed runs.

Bluetooth & Data Monitoring:
"With offline data recording, users can track ESC performance and analyze key metrics to improve their driving strategy. This function allows racers to make precise adjustments based on real-time data, optimizing power output and battery usage. The ESC’s built-in Bluetooth enables seamless wireless monitoring and tuning. Users can review recorded data via the Cayote Team app or the Xlink Multifunction LCD Program Box (CYECPB01 - sold separately)* to fine-tune their setup for consistent and reliable results."

Advanced Protection & Customization:
Equipped with over thirty-three adjustable parameters, the Crest 8 ESC offers extensive tuning options to match various racing styles. Multiple protection functions such as low voltage and motor overheat protection safeguard your electronics from damage. The built-in professional reversing shutdown system ensures precise control, making it a reliable choice for demanding racing conditions.
