Castle Sidewinder SCT Waterproof ESC with 1410-3800kV Sensored Motor Combo


LOADING IMAGES
Castle Creations (CSE) Logo Castle Sidewinder SCT Waterproof ESC with 1410-3800kV Sensored Motor Combo
$144.95
This is a Castle Creations part #010-0123-02, A Sidewinder SCT Waterproof ESC with 1410-3800kV Sensored Motor Combo

Availability: In stock*

Only 1 left

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The Sidewinder SCT is Castle’s solution for anyone who needs an unbeatable combination of power and affordability in a special edition controller and motor combo made for Short Course Truck racing. While the sensored capabilities of the motor cannot be utilized with the Sidewinder SCT, users will benefit as the sensored motor is rebuildable, and this design even allows modelers to replace damaged motor wires. The Sidewinder SCT Combo will give you great response and performance right of the box!

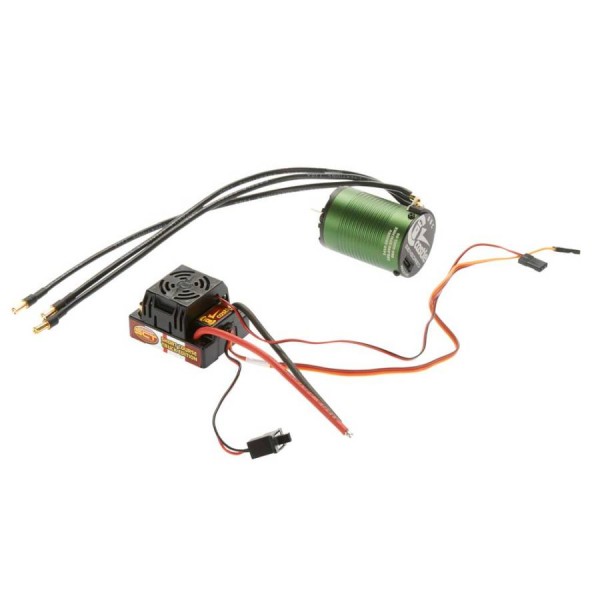

Includes:

  • Sidewinder SCT Edition ESC
  • Castle 1410 1Y 3800 Kv sensored** motor (with 3.2mm shaft)

Notes:

Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.Although Sidewinder SCT and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Sensored capabilities of the motor cannot be utilized with the Sidewinder SCT. If you require sensored operation you will need a sensored ESC like the Mamba X. The Mamba X paired with the same motor can be found here.

Specs

Product Specifications

Part NumberCSE010-0123-02
Input Voltage Range2-3S LiPo
BEC Specifications5.0 volts fixed, 2 amps.
Operating EnvironmentWaterproof* design allows for use in nearly any environment.
BrakeProportional
ReversibleYes, but may be disabled for racing.
On/Off SwitchYes
Cooling FanOptional, coming soon!
SizeLength: 52.7mm
Weight (w/wires)237g / 8.4oz
Connectors4mm male Castle Bullet Connectors
Items Needed for OperationBattery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
Application GuidelinesIdeal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (2S) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S)
Max. Recommended Vehicle WeightUp to 6.5lbs. on 2s
ProgrammabilityFully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Telemetry Link CapableNo
Kv3800
Max. RPM100,000
Diameter1/8" (3.17mm)
Shaft SizeLength: 15.5mm
Mounting Hole SpecificationsM3 @ 25mm
Recommended ESC(s)Combo includes Sidewinder SCT
