Brute Power and Sheer Stamina!Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable. Brute power and sheer stamina have made this our legacy “power up” for popular 1/8th scale buggies, truggies and on road vehicles and 1/10th scale monster trucks.
The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you’d be interested in running a 1/8th scale RC buggy or truck.
Industry Leading Software Functions
The Mamba Monster 2 includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience.
Castle Link adjustable settings include:
Throttle
Braking curve
Drag brake
Auto LiPo cutoff
Punch Control
Reverse Type
Motor Type
Powerful Combination

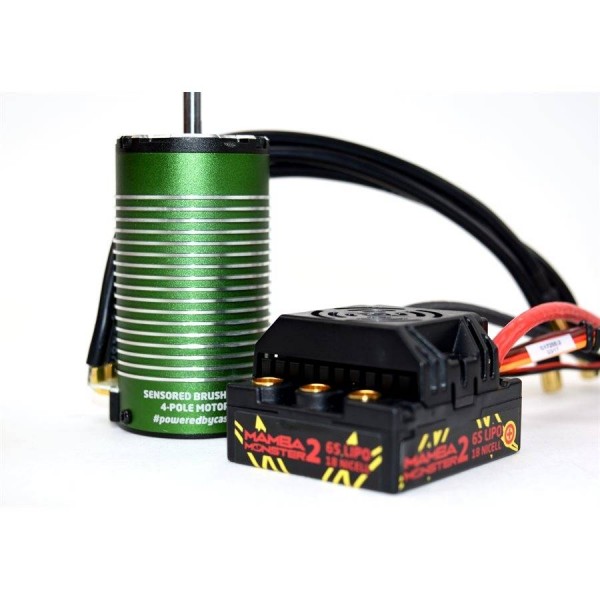

This combo includes the Mamba Monster 2 controller and the Castle 1515-2200Kv sensored* motor, which features
High quality oversized NMB bearings
Sintered neodymium magnets
Superior electromagnetic design
Replaceable motor wires via Gold-Plated Solder TabsIncludes:
- Mamba Monster 2 ESC
- 1515-2200kv sensored* brushless motor
- Coupon for free Castle Link USB adapter
- Driver's Ed and Quick Start Guide
- Decal sheet
Notes:
Sensored capabilities of the motor cannot be utilized with the Mamba Monster 2. If you require sensored operation you will need a sensored ESC like the Mamba Monster X
Waterproof : YesSpecs
Telemetry Capable : No
Data Logging : No
Auxiliary Wire : No
Minimum Input Voltage : 2S
Maximum Input Voltage : 6S
Shaft size: Diameter: 5mm, Length: 20mm
Max. RPM: 60,000
Motor Size: Length: 2.96" (75.18mm) / Diameter: 1.57" (39.98mm)
Mounting Hole Specifications: 3mm and 4mm screw holes @ 1" (25.4mm) spacing.
Connectors: 6.5mm male bullets.
Max. Recommended Vehicle Weight: 15 lbs (with batteries, ready to run)
Application Guidelines: The ESC and motor are intended for up to 6S (25.2 Volt) operation. Incredible in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1/8th buggies and truggies and on road as well. (vehicle weight limit is 15 lbs or less, with batteries ready-to-run).
Sensored Capable : No
Recon G6 Certified ESC : No
ROAR Certified ESC : No- Specs
Product Specifications
Part Number CSE010-0108-03 Waterproof Yes Telemetry Capable No Data Logging No Auxiliary Wire No Minimum Input Voltage 2S Maximum Input Voltage 6S Shaft size Diameter: 5mm, Length: 20mm Max. RPM 60,000 Motor Size Length: 2.96" (75.18mm) / Diameter: 1.57" (39.98mm) Mounting Hole Specifications 3mm and 4mm screw holes @ 1" (25.4mm) spacing. Connectors 6.5mm male bullets. Max. Recommended Vehicle Weight 15 lbs (with batteries, ready to run) Application Guidelines The ESC and motor are intended for up to 6S (25.2 Volt) operation. Incredible in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1/8th buggies and truggies and on road as well. (vehicle weight limit is 15 lbs or less, with batteries ready-to-run). Sensored Capable No Recon G6 Certified ESC No ROAR Certified ESC No - Reviews
